Hs4510 Electric O Type Shut-off Ball Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product introduction

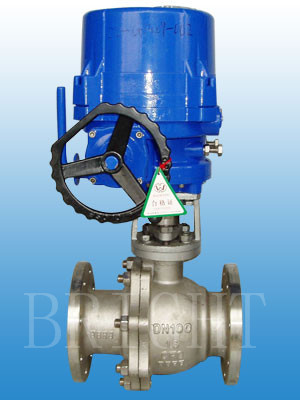

HS4510 electric O type shut-off ball valve is improved on the basis of our several years' mature technology and manufactured by the mean of OEM for an American company. It has good quality and stable performance, and can meet the requirements of many industries' fluid transportation.
This series shut-off (control) valves are comprised of electric actuators and ball valves. The product can be widely applied to the automation control in petroleum, chemical, paper making, metallurgy and waste water treatment industries.
- Product characteristics
- 1) Compact structure, small cubage, light weight and convenient
to be installed and maintained;
2) Smooth flow path, almost zero flow resistance;
3) Soft sealing seat with credible sealing property which can
achieve zero leakage;

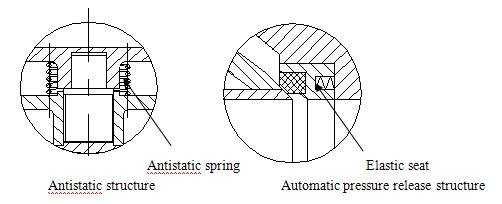

4) Anti-static device;
5) Flexible seat with automatic pressure release structure;
6) Fireproofing structure;
7)Ball core with hole, and when valve is open it can balance the
pressure in the valve and protect the seat.
Application standard- Quality system: TS, ISO9001
- Design: refer to GB12338,MSS-SP-68
- Face to face: refer to GB12221-89
- Flange standard: JB/T79.1-94, ANSI
- Test standard: GB/T4213-2008, API598
Main technology data| DN(mm) | DN15~DN400(please contact us for DN400 above) |
| PN | PN16, 25,40, 64
ANSI150,300,400 |
| Actuator type | ATQ type electric actuator |
| Supply voltage | AC220V, AC380V, AC110V |
| Control signal | Electric or air ON/OFF signal |
Allowable fluid temperature
| Nonmetal soft sealing | RPTFE seat | -20~+180°C |
| PPL seat | -20~+250°C |
| Hard sealing | CGM seat | -40~+400°C |
| (304,316L)+STL overlaying seat | -60~+500°C |
| Rated stroke | Shut-off type:0-90°rotary angle |
| Ambient temperature | -20~70°C (The product should be specially produced or configured if over this range) |
| Inherent flow characteristic | Quick open |
| Material of main parts | See Breakdown Drawing of valve and Table of Material for parts |
| Leakage | Soft sealing | RPTFE sealing | Class VI |
| PPL sealing | Class VI |
| Hard sealing | Metal hard sealing |
| Class IV (class VI can be met according to client's demand) |
Material of main parts (basic type for reference only)| No. | Name of parts | Material | No. | Name of parts | Material |
| 1 | Master body | WCB | 7 | Seat | PTFE |
| 2 | Auxiliary body | WCB | 8 | Seat retainer | 304 |
| 3 | Core | 304 | 9 | Spring | 60Si2Mn |
| 4 | Gland | 304 | 10 | Lower stem | 2Cr13 |
| 5 | Packing | PTFE | 11 | Bottom flange | 25# |
| 6 | Upper stem | 316L | | | |
- Optional material (Supply as your request)
| No. | Name of parts
| Material | Recommended temp. range |
| 1 | Master and auxiliary body | WCB | -40~+450ºC |
| CF8 | -60~+580ºC |
| 316L | -60~+580ºC |
| 2 | Core | 304 | -60~+580ºC |
| 316 | -60~+580ºC |
| 316L | -60~+580ºC |
| STL overlaying(granule media, high temperature and pressure) overlaying STL overlaying | -60~+580ºC |
| 3 | Stem | 304 | -60~+580ºC |
| 316 | -60~+580ºC |
| 4 | Packing | PTFE | -20~+180ºC |
| Graphite | -20~+500ºC |
| 5 | Seat | RPTFE | -20~+180ºC |
| PPL | -20~+250ºC |
| (304,316L)+STL | -60~+500ºC |
- Internal structure(Figure)

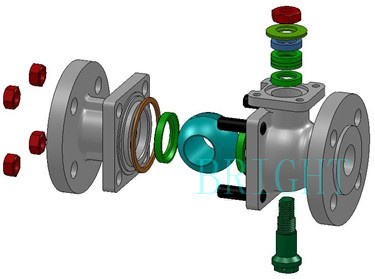

Float ball valve

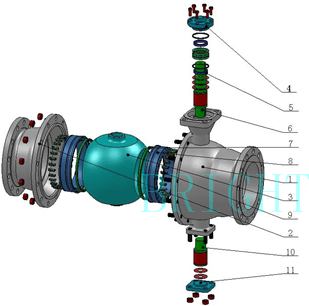

Trunnion ball valve
Differential pressure for standard configuration of ball valve & electric actuator
| Size of valve | Maximum close pressure(100KPa) | Handwheel model (optional) |
| ATQ type electric actuator(standard configuration) |
| Body class PN16 | Body class PN40 |
| DN15 | 19.6 | 50.0 | Wrench |
| DN20 | 19.6 | 50.0 |
| DN25 | 19.6 | 50.0 |
| DN32 | 19.6 | 50.0 |
| DN40 | 19.6 | 50.0 |
| DN50 | 19.6 | 50.0 |
| DN65 | 19.6 | 50.0 | HFS01 |
| DN80 | 19.6 | 37.3 | HFS01/HFS02 |
| DN100 | 19.6 | 37.9 | HFS02/HFS03/HFS04 |
| DN125 | 19.6 | 32.3 |
| DN150 | 19.6 | 21.0 |
| DN200 | 12.4 | 23.2 |
| DN250 | 11.7 | 11.7 | HFS04 |
| DN300 | 6.5 | 6.5 |
| Prod Model: |
HS4510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Dia.: |
15mm(1/2")-300mm(12") |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Material: |
CS, Ss, Alloy Steel |
| Structure: |
Floating Ball Valve and Trunnion Ball Valve |
| Type: |
Floating Ball Valve and Trunnion Ball Valve |
| Function: |
Shufoff |
| Temperature: |
Customized |
