| Price: | US $ 100/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

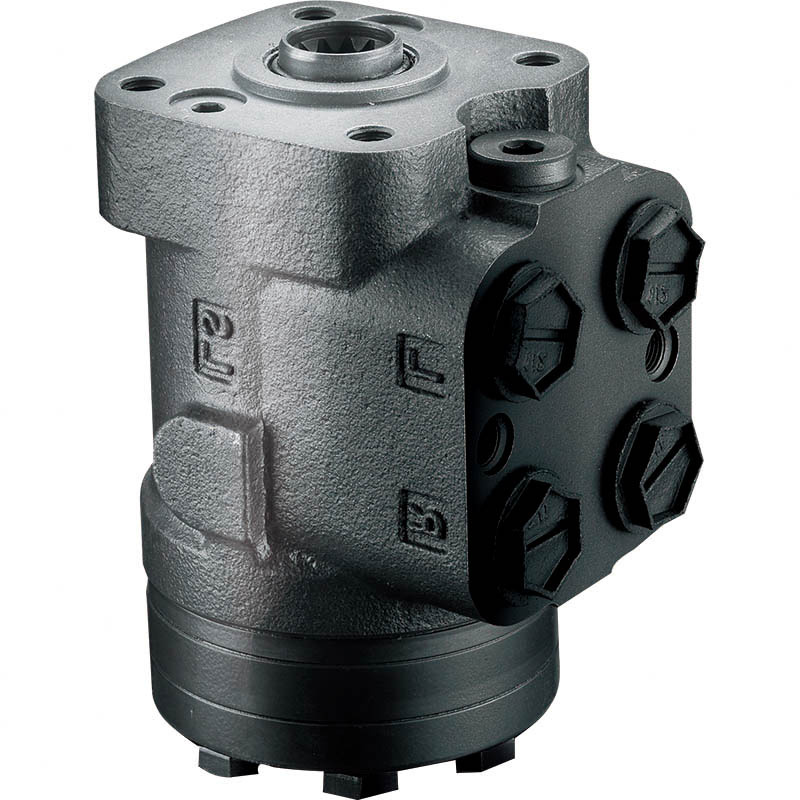

The advantages of the hydraulic steering control units:
1.Low cost, reliable.
2.No load reaction on the steering wheel comfortable.
3.Manual operation available when the pump doesnt work.
4.Low control torque, continuous operation.
5.According to the system, different function and pressure level valves available.
BZZ symbols
| TECHNICAL DATA | |||||||
| TYPE | Displacement | Rated Flow | Max.input | Max.Cont.Back | Normal Input | Length | Weight |
| Pressure | Pressure | Torque | |||||
| BZZ1\2\3-50 | 50 | 5 | 17.5 | 2.5 | <2.5 | 140 | 4.7 |
| BZZ1\2\3-63 | 63 | 6 | 17.5 | 2.5 | <2.5 | 141 | 4.8 |
| BZZ1\2\3-80 | 80 | 8 | 17.5 | 2.5 | <2.5 | 142 | 5 |
| BZZ1\2\3-100 | 100 | 10 | 17.5 | 2.5 | <2.5 | 145 | 5.2 |
| BZZ1\2\3-125 | 125 | 13 | 17.5 | 2.5 | <2.5 | 148 | 5.4 |
| BZZ1\2\3-160 | 160 | 16 | 17.5 | 2.5 | <2.5 | 153 | 5.7 |
| BZZ1\2\3-200 | 200 | 20 | 17.5 | 2.5 | <3 | 158 | 6 |
| BZZ1\3-250 | 250 | 25 | 17.5 | 2.5 | <3 | 164 | 6.5 |
| BZZ1\3-280 | 280 | 28 | 17.5 | 2.5 | <3 | 169 | 6.8 |
| BZZ1\3-315 | 315 | 32 | 17.5 | 2.5 | <3 | 174 | 7.1 |
| BZZ1\3-400 | 400 | 40 | 17.5 | 2.5 | <3 | 184 | 7.8 |
| BZZ1\3-500 | 500 | 50 | 17.5 | 2.5 | <5 | 197 | 8.7 |
| BZZ1\3-630 | 630 | 60 | 16 | 2.5 | <5 | 216 | 9.8 |
| BZZ1\3-800 | 800 | 75 | 16 | 2.5 | <5 | 236 | 11 |
| BZZ1\3-1000 | 1000 | 75 | 16 | 2.5 | <5 | 262 | 12.8 |
| Prod Model: | BZZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Hydraulic Motor |
