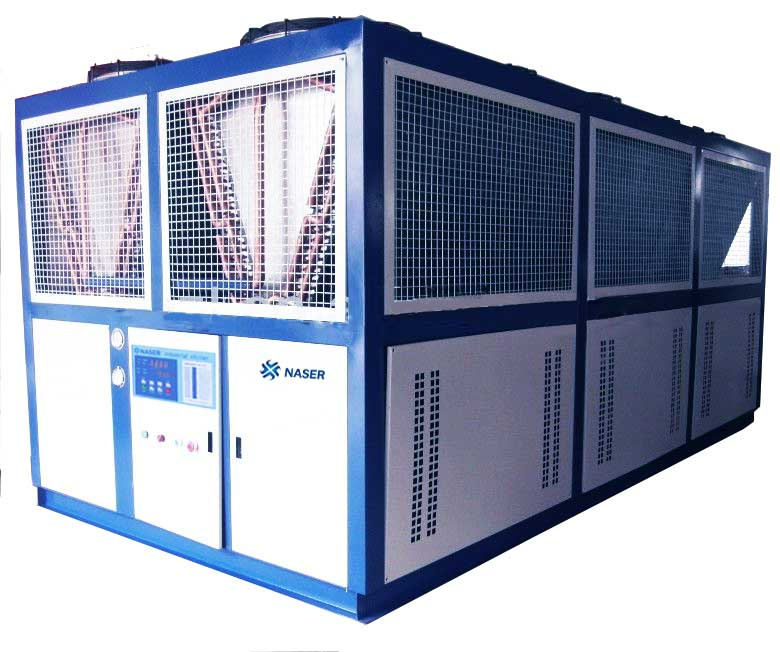

Industrial Air Cooling Water Chiller
| Price: |
US $ 44500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
As an industrial water chiller, this water-cooled screw chiller has the following features:
1. Our compressor is imported from Italy, France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.
2. Cooling capacity range: 113.8kw~838kw
3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.
4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers'request
5. The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.
6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
8. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C, R134A or R507.
| chart of technical parameters of water cooling spiral long rod chiller unit |
| Type |
|
| Screw Water Chiller |
|
|
|
|
|
|
|
|
|
| Model |
|
| NWS-40WSCS | NWS-50WSCS | NWS-60WSCS | NWS-70WSCS | NWS-80WSCS | NWS-100WSCS | NWS-110WSCS | NWS-120WSCS | NWS-140WSCS | NWS-160WSCS |
| norminal output | 50HZ | Btu/h | 388513 | 493664 | 541802 | 628176 | 726499 | 893102 | 993815 | 1075751 | 1281274 | 1431832 |
|
| KW | 113.8 | 144.6 | 158.7 | 184 | 212.8 | 261.6 | 291.1 | 315.1 | 375.3 | 419.4 |
|
| Kcal/h | 97868 | 124356 | 136482 | 158240 | 183008 | 224976 | 250346 | 270986 | 322758 | 360684 |
|
| USRT | 32.4 | 41.1 | 45.1 | 52.3 | 60.5 | 74.4 | 8208 | 89.6 | 106.7 | 119.2 |
| Power Input |
|
| 380V/3P/50HZ |
|
|
|
|
|
|
|
|
|
| Compression | Compressor Power | 28.7 | 35.7 | 37.6 | 43.7 | 50 | 7.3 | 67 | 72.6 | 85.4 | 94.6 |
| Quantity | Piece | 40HP*1 | 50HP*1 | 60HP*1 | 70HP*1 | 80HP*1 | 100HP*1 | 110HP*1 | 120HP*1 | 140HP*1 | 160HP*1 |
| Flow regulator |
| Termoexpension valve |
|
|
|
|
|
|
|
|
|
|
| Retrigreant |
| R22 |
|
|
|
|
|
|
|
|
|
|
| condenser | style | Hub pipe type |
|
|
|
|
|
|
|
|
|
|
| water flow | m3/h | 23.27 | 29.47 | 32.14 | 37.28 | 43.04 | 52.76 | 58.7 | 63.55 | 75.55 | 84.32 |
| diamater of nipple | DN | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 125 | 125 | 125 |
| evaporator | style | Hub pipe type |
|
|
|
|
|
|
|
|
|
|
| standard freezing water flow | m3/h | 19.57 | 24.87 | 27.29 | 31.64 | 36.59 | 44.98 | 50.06 | 54.18 | 64.54 | 72.12 |
| diameter of standard nipple | DN | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 125 | 125 | 125 |
| machine weight |
| Kg | 750 | 850 | 900 | 1100 | 1280 | 1600 | 1800 | 2080 | 2200 | 2700 |
| Type |
|
| Screw Water Chiller |
|
|
|
|
|
|
|
|
|
| Model |
|
| NWS-80WSCD | NWS-100WSCD | NWS-120WSCD | NWS-140WSCD | NWS-1600WSCD | NWS-200WSCD | NWS-220WSCD | NWS-240WSCD | NWS-280WSCD | NWS-320WSCD |
| norminal output | 50HZ | Btu/h | 777026 | 987329 | 1083604 | 1256352 | 1452998 | 1786205 | 1987631 | 2151503 | 2562548 | 2863663 |
|
| KW | 227.6 | 289.2 | 317.4 | 368 | 425.6 | 523.2 | 582.2 | 630.2 | 750.6 | 838.8 |
|
| Kcal/h | 195736 | 248712 | 272964 | 316480 | 366016 | 49952 | 500692 | 541972 | 645516 | 721368 |
|
| USRT | 64.7 | 82.2 | 90.2 | 104.6 | 121 | 148.8 | 165.5 | 179.2 | 213.4 | 238.5 |
| Power Input |
|
| 380V/3P/50HZ |
|
|
|
|
|
|
|
|
|
| Compression | Compressor Power | 57.4 | 71.2 | 75.2 | 87.4 | 100 | 120.6 | 134 | 145.2 | 170.8 | 189.2 |
| Quantity | Piece | 40HP*2 | 50HP*2 | 60HP*2 | 70HP*2 | 80HP*2 | 100HP*2 | 110HP*2 | 120HP*2 | 140HP*2 | 160HP*2 |
| Flow regulator |
| Termoexpension valve |
|
|
|
|
|
|
|
|
|
|
| Retrigreant |
| R22 |
|
|
|
|
|
|
|
|
|
|
| condenser | style | Hub pipe type |
|
|
|
|
|
|
|
|
|
|
| water flow | m3/h | 46.54 | 58.94 | 64.28 | 74.55 | 86.08 | 105.52 | 117.4 | 127.1 | 75.55 | 168.64 |
| diamater of nipple | DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 150 | 151.1 | 200 |
| evaporator | style | 150 |
|
|
|
|
|
|
|
|
|
|
| standard freezing water flow | m3/h | 39.14 | 49.73 | 54.58 | 63.28 | 73.19 | 89.97 | 100.12 | 108.37 | 129.07 | 144.24 |
| diameter of standard nipple | DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 150 | 150 | 200 |
| machine weight |
| Kg | 1600 | 1800 | 2200 | 2700 | 3000 | 3200 | 3500 | 3700 | 3920 | 4100 |
| Prod Model: |
NWS-220WSCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Cooling Capacity: |
759kw |
| Standard Freezing Water Flow: |
130.55m3/H |
| Diameter Of Standard Nipple: |
Dn150mm |
| Weight: |
3500kg |
| Compressor Power: |
164kw |
| Condenser Type: |
Shell and Tube Type |
| Evaporator Type: |
Shell and Tube Type |
| Refrigerant: |
R22/R407c/R404A/R410A |
| Voltage: |
Optinal |
| Flow Regulator: |
Expansion Valve |
| Type: |
Water-Cooled |
| Certification: |
SGS |
| Condition: |
New |
