Body site: Carbon steel\stainless steel
Gate: Stainless steel
Stem: Stainless steel
Gasket ring: Rubber, PTFE, polyurethane, stainless steel and hard alloy

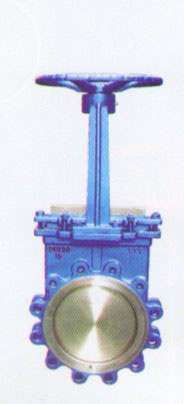

Stainless Steel Knife Gate Valves (PZ73H)
Standards Compliance:
MSS SP-81, JB/T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533; JB79; GB/T 9113; HG20592
Inspect & Test: API 598, GB/T 13927; JB/T 9092
Carbon Steel:
Cast Carbon Steel A216 Gr WCB Body and Bonnet.
F316 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Cast Iron:
Cast Iron A126 GR. B Body and Bonnet.
F304 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials.
Various trim materials available to suit service conditions.
| Main Performance Specifications |
| Nominal pressure | PN |
| Shell | 0.9*PN | 1.5*PN | 2.4*PN |
| Seal Test | 0.7*PN | 1.1*PN | 1.76*PN |
| Working temperature | Rubber≤ 80degree Celsius, PTFE≤ 180degree Celsius, hard-sealed≤ 425degree Celsius |
| The use of media | Syrup, paper pulp, sewage, coal slurry, ash and slag-water mixture |
