Metal Seated Non-Rising Stem Gate Valves

Metal Seated Non-Rising Stem Gate Valves
Price: US $ 208.6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Specification:
1. ISO
2 Best quality
3. Factory

non-rising stem cast iron resilient seated gate valve
Metal Seated Gate Valve/Cast Iron Gate Valve

This kind of product have been used in the fields of petro-chem, pharma centicallnd and power Industry, etc. It is used by means of open and close on the pipes of steam, water and oil, etc.

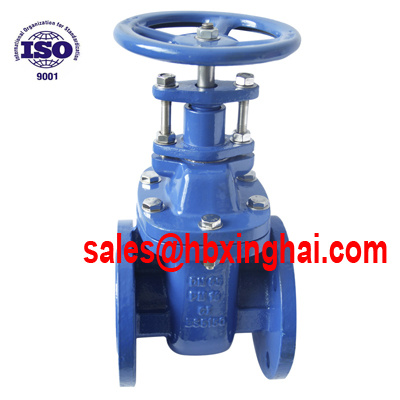

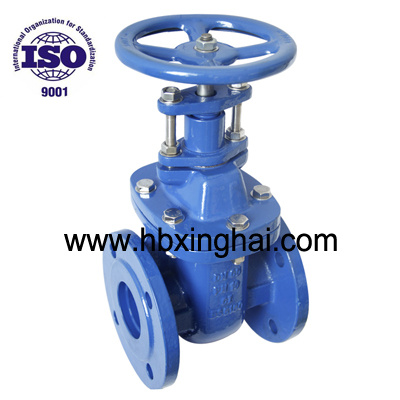

METAL SEATED (NON RISING/RISNG STEM) GATE VALVE

Design and manufacture conform to BS 5150/MSS SP-70

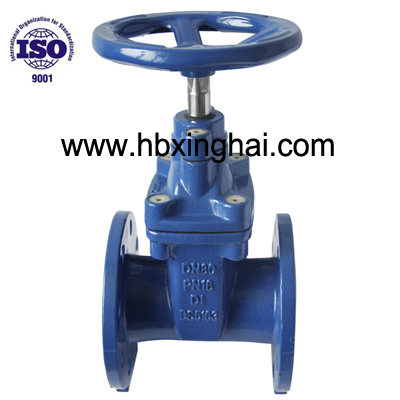

Resilient Seated (NON RISING/RISNG STEM) GATE VALVE
GATE VALVE NRS BS5150 PN16

Design and manufacture conform to BS 5163/DIN 3202 F4 A& B

metal seated cast iron gate valve Component

No.PART NAMEMATERIAL
1BodyCast iron, ductile iron
2Body seatBronze, brass
3Wedge seatBronze, brass
4WedgeCast iron, ductile iron
5Stem nutBronze,brass
6StemStrainless steel
7GasketGraphite
8Bonnet boltCarbon steel
9NutCarbon steel
10BonnetCast iron,ductile iron
11BoltsCarbon steel
12GasketGraphite
13Stuffing boxCast iron,ductile iron
14PackingGraphite
15Gland followerCast iron,ductile iron
16Hand wheelCarbon steel,ductile iron
17WasherCarbon steel
18Hand wheel nutCarbon steel


resilient seated cast iron gate valve Component

NOPART NAMEMETERIAL
1BODYDUCTILE IRON
2DISCDUCTILE IRON with EPDM/BUNA
3DISC NUTDUCTILE IRON
4NUTQ235A
5BONNETDUCTILE IRON
6STEMQ235A
7SEAL RINGNBR/EPDM
8NUTBRASS
9HAND WHEELDI/C.S.
10BOLTQ235A
11SEAL RINGNBR/EPDM
12LOCATING RINGQ235A



Production process

We are manufacturer and have own factory and production lines.


We test the gate valve one by one
We have a sophisticated casting technology.

The gate valves are tested by 2 times before leaving our factory.
1.The fist time is in the assembly process, and valves are tested one by one.
2.The second time is before packaging, we use the method of spot check, 5%. Once found problems, 100% testing.
3.So we can guarantee 95%~98% zero-leaking.







Prod Model: DN200 8''
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour: Blue or Black
Media: Water
Standard Or Nonstandard: Standard
Brand: Xinghai or OEM Provided
Material: Cast Iron
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Standard: BS5150
Hebei Xinhe Xinghai Valve Industry Co., Ltd manufactures wafer and flanged butterfly valves, wafer check valves, cast iron gate valves, cast iron Y strainers and other valve components. All the valves meet ISO, BS, DIN, ANSI or per customer specified standards. Our valves have been installing on the pipelines in water, Oil, gas and other industries.

All our valves adopted advanced designing, strict QA procedure, foundry, machining and assembly integrated process assured quality control. We are DNV ISO 9001 certified company with strong technical support, fine manufacture, advanced inspection, reliable quality. Our products are sold both at home and abroad, which received very good reputation.

"Quality First, Customer First" always is the core of our concept of business management. To serve the needs of valve market and customers, we will provide users with reliable, high-quality valves through carrying out technological innovation, developing new products and expanding services.

We sincerely hope your visit and cooperation, and establish win-win trade relationship to have mutual development.
