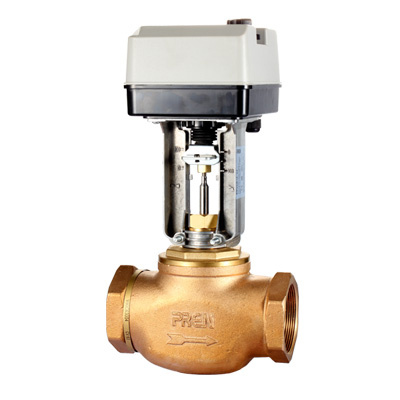

V90C, designed to be used together with PRVAR10 actuator (or other brand actuator), it can be used among the water temperature range from -5° C to +150° C.
Technical Parameter
1. Flow Characteristic: Equal Percent
2. Max. Differential Pressure: 1.6MPa
3. Stroke: 20MM
4. Medium Temperature: -5° C+150° C
5. Medium: Hot Water, Cool Water, Mixture of Ethylene Glycol and Water
6. Adjustable Range: 100: 1
7. Max. Leak: Kvs 0.05%
8. Pressure Level: PN25
9. Connecting: BSPT Internal Thread
Material
1. Valve Body: Bronze
2. Valve Plug: Copper Alloy
3. Valve Rod, Valve Seat: Stainless Steel 304
4. Valve Deck: Bronze
5. Sealing Element: Enhanced PTFE V Ring (Mix Graphite), Other Sealing Element is optional.
O O-Ring FPM
Model No. |
Valve |
Specification |
Kvs |
Actuator |
Sealing Element |
Closed Differential Pressure (Kpa) |
|
V90C63004 |
2 Two-Way |
DN65 |
63 |
PRVAR10 |
PVR-40 |
1200 |
|
V90C10012 |
2 Two-Way |
DN80 |
100 |
PRVAR10 |
PVR-40 |
1000 |
|
V903C63004 |
2() Two-Way (Steam) |
DN65 |
63 |
PRVAR10 |
PVR-40 |
1200 |
|
V803C10012 |
2() Two-Way (Steam) |
DN80 |
100 |
PRVAR10 |
PVR-40 |
1000 |
