Non Rising Stm Resilient Gate Valve (BS5163)
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

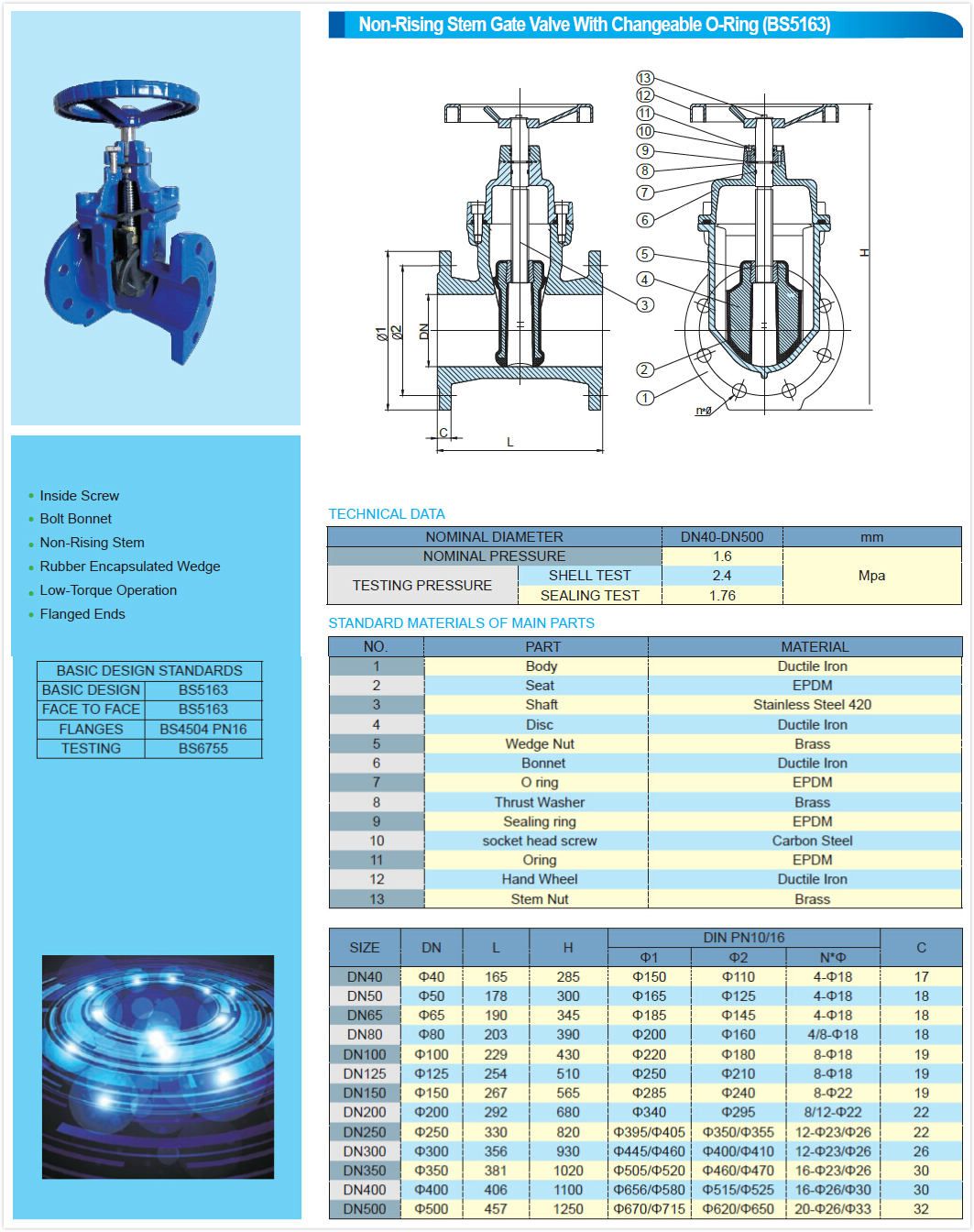

Non Rising Stem Resilient Seat Gate Valve
Features:
1. Inside Screw
2. Bolt Bonnet
3. Non rising Stem
4. Rubber Encapsulated Wedge
5. Low Torque operation
6. Flanged End
Size: DN50-DN600
1 Face to face is according to ANSI B16.10
2 Flange drilled is according to ANSI B16.10 125/150LB
3 Nominal pressure: 150LB
Materials:
1 Body&Bonnet: Cast iron /Ductile Iron
2 Seat ring: EPDM
3 Wedge: Ductile iron
5 Wedge Nut: Brass
6 Stem: Stainless Steel416/420
7 Gasket EPDM
9 O ring: EPDM
12 Stem Sealing EPDM
13 Stuffing Nut Brass
21 Dust Guard EPDM/NBR
| Prod Model: |
TFW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50-Dn600 |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.
Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.
Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.
We offer technical expertise and willingness to work with the customer.
