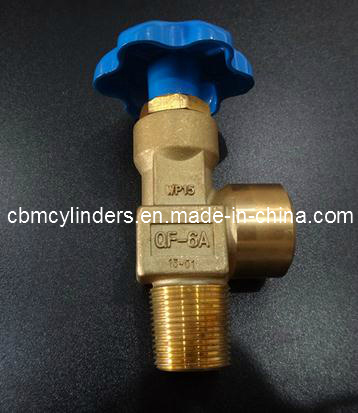

Oxygen Gas Cylinder Valve QF-6A for Gas Cylinders:
-Mat: Brass;
-DN: 4mm; W. P: 15Mpa;
-Inlet Thread: PZ 27.8;
Outlet thread: Female 5/8''G.
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.
The simplest, and very ancient, valve is simply a freely hinged flap which drops to obstruct fluid (gas or liquid) flow in one direction, but is pushed open by flow in the opposite direction. This is called a check valve, as it prevents or "checks" the flow in one direction.
Valves have many uses, including controlling water for Irrigation, industrial uses for controlling processes, residential uses such as on / off & pressure control to dish and clothes washers & taps in the home. Even aerosols have a tiny valve built in. Valves are also used in the military & transport sectors.
Gas cylinder valves are found in virtually every industrial process, including water & sewage processing, mining, power generation, processing of oil, gas & petroleum, food manufacturing, chemical & plastic manufacturing and many other fields.
Should you have any intersts or some more info needed on our gas cylinder valves, just pls feel free to enquire us!
NO. |
Type No. |
Produce Name |
suitable
Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread(mm) |
Jiont Thread
to cylinder (mm) |
Temp./Pressure
of safety device |
1 |
QF-6A |
Valve type oxygen bottle valve |
|
|
15 |
4 |
G5/8 |
GB8335 PZ27.8 |
21±1.5 |
2 |
QF-2A1 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
7 |
W22 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
3 |
QF-2A8 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W21.8 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
4 |
QF-2A17 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
CGA320 |
GB8335 PZ27.8 |
21±1.5 |
5 |
QF-17 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
12.5 |
4 |
CGA320 |
UNF1.125-12 |
15-18.75 |
6 |
QF-16A |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
2.5 |
W21.8 x 1/14 |
M18 x 1.5 |
21±1.5 |
7 |
QF-35 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
CGA320 |
UNF1.125-12 |
21±1.5 |
8 |
QF-35A |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
UNF1.125-12 |
21±1.5 |
9 |
QF-35B |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
UNT(1A)3/4-16 |
21±1.5 |
10 |
QF-35C |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
G1/2 |
UNF1.125-12 |
21±1.5 |
11 |
F-5 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
7 |
Female Thread G5/8 |
GB8335 PZ27.8 |
21±1.5 |
12 |
F-2M |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
JIS B 8246 V2 |
21±1.5 |
13 |
F-2M1 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
14 |
F-2M2 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
GB8335 PZ19.2 |
21±1.5 |
15 |
F-2N |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W21.8 x 1/14 |
JIS B 8246 V2 28 |
