Pilot-Operated Pressure Safety Relief Valve (GAA46F/GAA46H/GAA46Y)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |

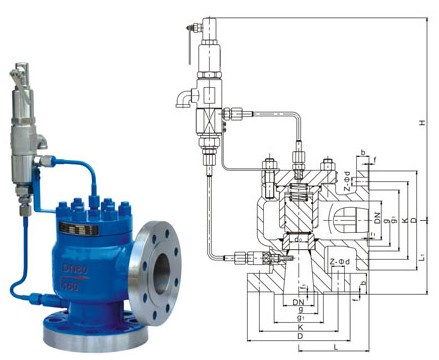

GAA46H/F Pilot Operated Safety ValveFeatures:Pilot operated safety valve, newly-structured,is mainly applied to such trades as petroleum&natural gas, chemistry, electric, metal-urgy&burning gas. It is the best super-pressure protecting equipment on press equipment, container, or pipeline. It is mainly characterized by shifting direct function of spring to indirect function of guide valve. What's more, main valve, applying for sleeve piston&double sealed seat, is characterized by high precision of action, good recycling function, fast turning back to seat, ability to high-pressure leaking, long working time&security, together with readjustment on line, automatic turning back to seat after leaking again and again, tight closure, operating and maintaining convenience.Flow protection is characterized by safety valves that are considerably larger than those mounted in thermal protection. They are generally sized for use in situations where significant quantities of gas or high volumes of liquid must be quickly discharged in order to protect the integrity of the vessel or pipeline. This protection can alternatively be achieved by installing a High Integrity Pressure Protection System (HIPPS).GAA46H/F pilot safety valve is a main valve and pilot valve a novel structure of the safety valve, pilot valve response system media pressure our own actions so as to control the switching of the main valve.GAA46H/F Pilot Safety Valve Application:GAA46H/F pilot safety valve is especially suitable for high back pressure, high flow, high pressure and the application of the installation location and compact spaces. pilot safety valve is mainly used for oil and gas, chemical, electric power, metallurgy, and city gas fields of compression equipment, containers or pipeline over pressure protection device. A46H/F Pilot Safety Valve Work Principle: When the system work properly, pilot safety valve in the closed state, the system pressure through the inlet pressure tube, and chamber pressure of the valve guide tube to spread to the main valve disc at the top of the dome chamber, which in the main valve produce a net downward force in the valve, main valve is turned off when the system pressure reaches the set pressure, the pilot valve to open and slip the shuttle closed pilot valve inlet channel, the pressure of the main valve chamber through the pilot valve emissions relief, because the system pressure is higher than back seat pressure, sliding shuttle closed the inlet channel, which cut off the flow of fluid in the pilot valve when the pressure of the main valve chamber a sharp decline in the fully open the main valve disc, fluid flow through the main bleed valve buck. when the system pressure falls below a certain value, the pilot valve spring force to overcome the force of the valve inlet pressure acting on the sliding shuttle pilot valve back seat, the top of the peak of the staff open the sliding shuttle, and finally the fluid to re-enter dome of the main valve chamber, close the main valve. A46H/F Pilot Operated Safety Valve structural features: - The seat of soft seal to ensure a good seal around the safety valve take-off - Allowable working pressure close to the safety valve setting safety valve main valve pressure. - The smaller over pressure will be able to quickly reach the status of full open. - The safety valve performance and the opening height from the back pressure. - Opening and closing Adjustable differential pressure -The pilot valve flow structure designed to reduce emissions of harmful media and environmental pollution.The Design&Manufacture Standard Of A46H/F Pilot Operated Safety Valve: structural length standard: GB/T12221-2005 connection flange standard: GB/T9113 pressure and temperature rating: the GB/T12224-2005 test standard: the GB/T13927-2008
A46H/Y /F Pilot Operated Safety Valve Materials| Main Parts. | Material. |
| Body. | WCB. |
| Cover. | 25. |
| Flap. | 2Cr13/2Cr13 PTFE.
1Cr18Ni9Ti/1Cr18Ni9Ti PTFE. |
| Guide Sleeve. | 1Cr18Ni9Ti. |
| Spring | 50CrVA |
| Prod Model: |
GAA46F/GAA46H/GAA46Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Safety Valve |
| Actuator: |
Automatic |
| Connecting Type: |
Flange |
| Structure: |
Pilot Operated |
| Material: |
Cast Steel |
| Medium: |
Petroleum&Natural Gas, Other Gas |
| Usage: |
Safety |
| Application: |
Industry |
