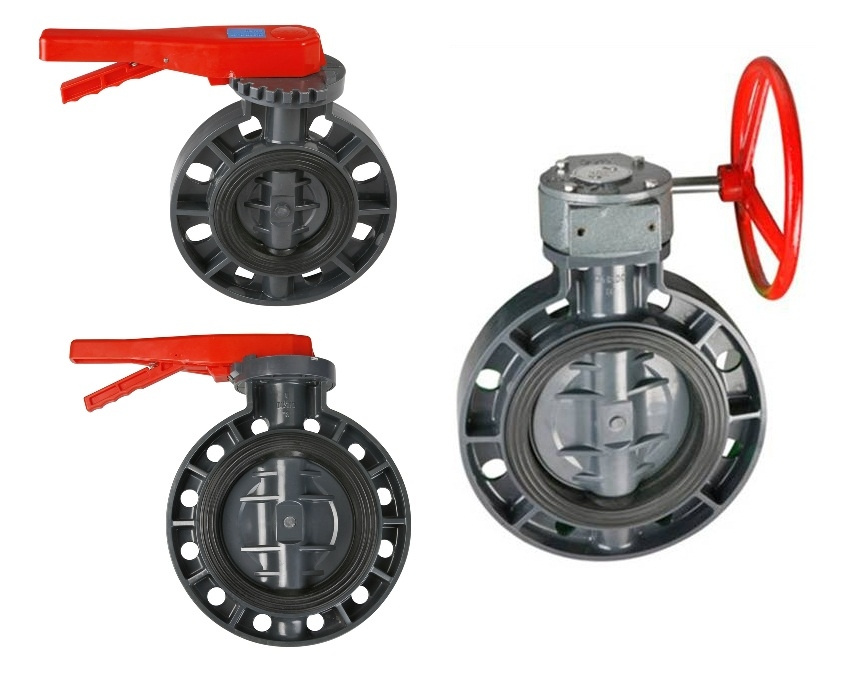

Plastic Butterfly Valve DIN, ANSI, JIS Standard From DN50-DN300 ( 2"-- 12" ). DN50 - DN150 PN10, DN200 PN6.
1. PVC Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Carbon Steel Stem #45 & EPDM Rubber.
2. PVC Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 420 & EPDM Rubber.
3. PVC Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & EPDM Rubber
4. PVC Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & FPM / VITON Rubber.
5. FF-PP / PP-G Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Carbon Stem #45 & EPDM Rubber.
6. FF-PP / PP-G Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 420 & EPDM Rubber.
7. FR-PP / PP-G Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & EPDM Rubber.
8. FR-PP / PP-G Butterfly Valve ( Lever & Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & FPM / VITON Rubber.
| Specification | Working Pressure | Carton Size | Carton |
| Size MM | Size Inch | Pipe Dia. MM | MPa | CM | Set |
| DN50 | 2" | 63 | 1.0MPa | 48× 41× 30 | 16 |
| DN65 | 2-1/2" | 75 | 1.0MPa | 48× 41× 30 | 14 |
| DN80 | 3" | 90 | 1.0MPa | 48× 41× 30 | 10 |
| DN100 | 4" | 110 | 1.0MPa | 48× 41× 30 | 8 |
| DN125 | 5" | 140 | 1.0MPa | 48× 41× 33 | 5 |
| DN150 | 6" | 160 | 1.0MPa | 48× 41× 30 | 4 |
| DN200 | 8" | 200 | 0.6MPa | 57× 38× 31 | 3 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
