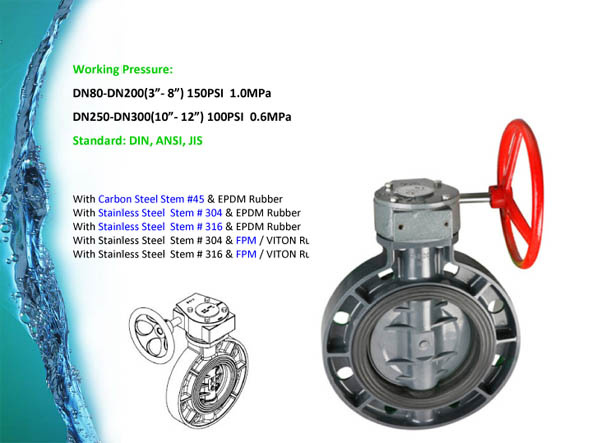

Plastic Butterfly Valve Worm Gear Series according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN200 ( 2"- 8" )
Feature:
Low Torque, Excellence Appearance, High-Strength, Corrosion Resistance, Long Life
Cast Iron Gear Box, High Ratio Speed Reduction, High Accuracy Opening, Energy and Space Saving Does Operation
The Disc Design to Make Sure Transmission System Safety
Patented Technology Valve Body Mounted with the Seat Seal to Ensure Low-Torque, More Convenient to Replace
PVC Butterfly Valve
FRPP Butterfly Valve
PPR Butterfly Valve
UPVC Non Actuator Butterfly Valve
UPVC Penumatic Butterfly Valve
UPVC Underground Butterfly Valve
|

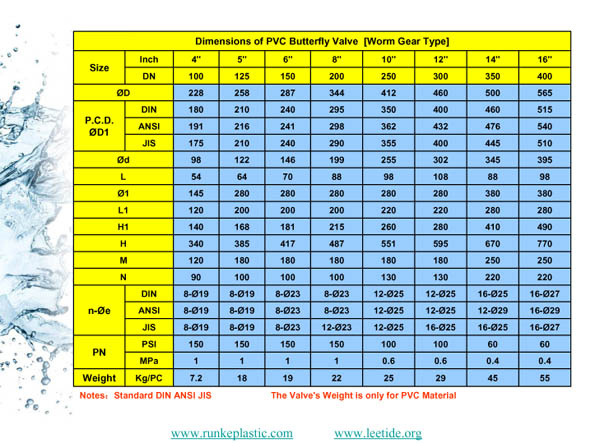

Specification |
Working Pressure |
Carton Size |
Carton |
|
Size MM |
Size Inch |
Pipe Dia. MM |
MPa |
CM |
Set |
|
DN80 |
3" |
90 |
1.0MPa |
44×33×37 |
4 |
|
DN100 |
4" |
110 |
1.0MPa |
44×33×37 |
4 |
|
DN125 |
5" |
140 |
1.0MPa |
44×33×37 |
2 |
|
DN150 |
6" |
160 |
1.0MPa |
44×33×37 |
2 |
|
DN200 |
8" |
200 |
1.0MPa |
47×26×54 |
1 |
|
DN250 |
10" |
250 |
0.6MPa |
53×28×64 |
1 |
|
DN300 |
12" DIN |
315 |
0.6MPa |
53×28×69 |
1 |
|
DN300 |
12" ANSI |
315 |
0.6MPa |
53×28×72 |
1 |
|
DN300 |
12" JIS |
315 |
0.6MPa |
53×28×72 |
1 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
