Plastic Butterfly Valve

Name: Plastic Butterfly Valve
Brand: Valve Industry
SKU: 662696375
Availability: InStock
Rating: 5 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Box
Pay Type:	L/C,T/T

Contact Supplier

Tianjin Runke Plastic Tech Co., Ltd.

Showroom Product Company Profile

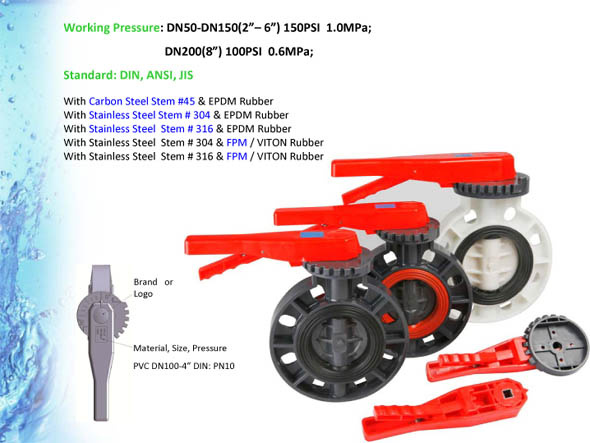

Plastic Butterfly Valve DIN, ANSI, JIS, CNS Standard, From DN50-DN300 ( 2"-- 12" ).

Feature:

Low Torque, Excellence Appearance, High-Strength, Corrosion Resistance, long Life

European-Style, Exposed Tooth Plate, Positioning Accuracy

Extra-Wide Handle, Department Handles Inlaid with Metal Stem Bushing Connection

Tri-Lock Lever Handle, Sturdiness and Durability

Butterfly Disc Rib Design, Transmission System to Ensure Safety

Patented Technology, the Body with the Seat Seal Mounted to Ensure that Low-Torque, More Convenient to Replace

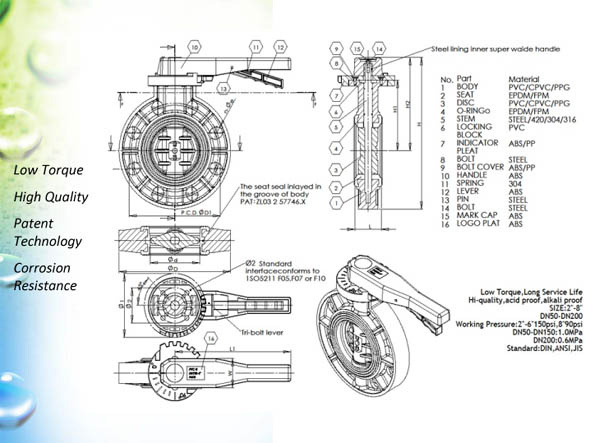

By Standard JIS, CNS DN200-8" Butterfly Valve Flange Hole 12-Dia. 23, P. C. D Dia. 290

Dia. 2 Design Standard ISO5211

PVC Butterfly Valve Level Style

PPG / FRPP Butterfly Valve
PPR Butterfly Valve
PVC Non Actuator Butterfly Valve
PVC Penumatic Butterfly Valve
PVC Underground Butterfly Valve

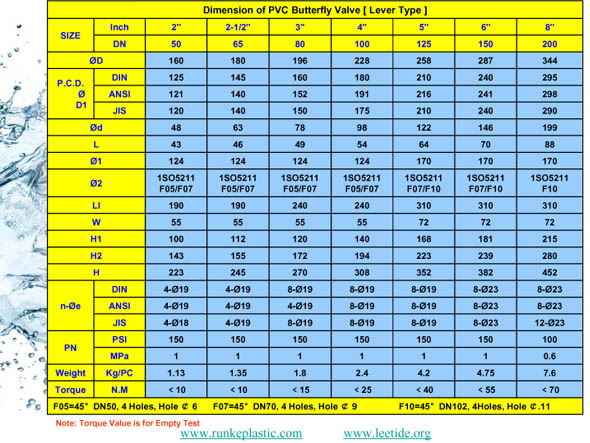

SIZE	Inch	2"	2- 1/2"	3’ ’	4"	5"	6"	8"
SIZE	DN	50	65	80	100	125	150	200
Ø D		160	180	196	228	258	287	344
P. C. D. Ø D1	DIN	125	145	160	180	210	240	295
	ANSI	121	140	152	191	216	241	298
	JIS	120	140	150	175	210	240	290
Ø d		48	63	78	98	122	146	199
L		43	46	49	54	64	70	88
Ø 1		124	124	124	124	170	170	170
Ø 2		1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F07/F10	1SO5211 F07/F10	1SO5211 F10
LI		190	190	240	240	310	310	310
W		55	55	55	55	72	72	72
H1		100	112	120	140	168	181	215
H2		143	155	172	194	223	239	280
H		223	245	270	308	352	382	452
n-Ø e	DIN	4-Ø 19	4-Ø 19	8-Ø 19	8-Ø 19	8-Ø 19	8-Ø 23	8-Ø 23
	ANSI	4-Ø 19	4-Ø 19	4-Ø 19	8-Ø 19	8-Ø 19	8-Ø 23	8-Ø 23
	JIS	4-Ø 18	4-Ø 19	8-Ø 19	8-Ø 19	8-Ø 19	8-Ø 23	12-Ø 23
PN	PSI	150	150	150	150	150	150	100
PN	MPa	1	1	1	1	1	1	0.6
Weight	Kg/PC	1.13	1.35	1.8	2.4	4.2	4.75	7.6
Torque	N. M	≤ 10	≤ 10	≤ 15	≤ 25	≤ 40	≤ 55	≤ 70

Prod Model:	DN50-DN300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Plastic Butterfly Valve:	DIN ANSI JIS Standard
Work Pressure:	Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed
Connection Form:	Flange
Seal Form:	Auto Sealed
Working Temperature:	Normal Temperature (',-40??C
Application:	Household Usage
Structure:	Butterfly
Valve Body:	Mould Pressure

Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce

PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;

PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.

PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;

PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;

PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;

HDPE Fittings for Water Supply SDR11 & SDR17

PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;

SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;

HDPE Inspection Chamber
