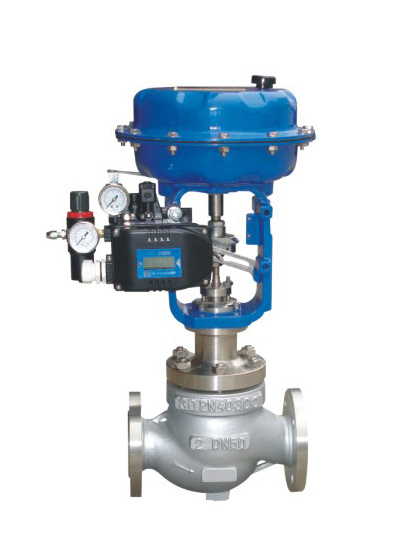

RV3000 pneumatic diaphragm control valve is top guide structure type. Valve structure is compact and an s-streamlined channel is available to realize small pressure drop loss, high flow, wide adjustable range and high flow characteristic accuracy. Conforms to IES5534-1-1976 standard. The weight and height of the valve reduce by 30%. The valve is applicable to clean medium places with small working pressure difference and relatively strict leakage requirement. The leakage rate of the control valve conforms to ANSI B16, 104 standards.
Main components material
Material of valve body: ZG3230-450, ZGR8N9TI, 316, 316L, etc.
Material of valve plug: ICR18NI9TI, 316, 316L, F4, etc.
Filling material: PTFE, flexible graphite
|
