Outline

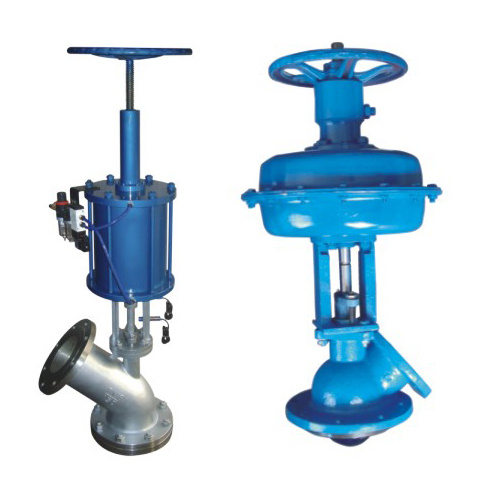

According to actual demand, bottom structure of RV ZSF(H) pneumatic discharge valve is designed to be flat bottom and valve work modes is provided. Inner cavity of valve body is provided with a scout-resistant and corrosion-resistant seal ring. The seal ring can protect valve body from medium scouring and corrosion when the valve is opened instantly. The seal ring is specially treated to make its surface of valve disc. Seal pair applies linear sealing to guarantee seal reliability and prevent scaring. The valve is mainly used for bottom discharge, emptying, sampling and shut-off operation without dead zone in reaction kettles, storage tanks and other vessels.
Model preparation instructions
P— Stainless steel body
16— 1.6Mpa
F— Discharge valve
ZS— Series piston actuator pneumatic
Multi-spring actuator film
RV— River-wave product
|
Technical parameters and performance indicators |
|
nominal diameter |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
seat diameter(mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
rated flow coefficient |
6 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
|
|
|
travel(mm) |
10 |
16 |
25 |
40 |
60 |
|
|
|
allowable differential pressure Mpa |
6 |
4 |
2 |
1 |
1 |
2 |
1.6 |
1 |
0.8 |
0.6 |
0.4 |
|
|
|
intrinsic error(%) |
±2.5 |
|
|
|
hysteresis error(%) |
2.5 |
|
dead error(%) |
1 |
As one of the four subsidaries of Shanghai River-wave International Group Co., Ltd, Shanghai River-wave Fluid Machine Manufacturing Co., Ltd. Was accredited with Shanghai Hi-tech Enterprise in 2010. The application of the first-class fine machining center, CNC machine tools as well as control valve flow characteristics testing and monitoring center makes it highly effective for us to provide users with flow curves, flow characteristic curves of the control valve and other curves related to pressure, flow and temperature by means of microprocessor control.
Currently, Shanghai River-wave put its major focus on manufacturing control valves, regulating valves, PSA pneumatic sequencing valves, electric control valves, ball valves, butterfly valves, globe valves and products of other series. We have been proving valves for Germany BASF, Bayer, Shanghai Waigaoqiao Shipbuilding Co., Ltd, Yangzi Petrochemical Co., Ltd. Jiangnan Shipbuilding Works, etc...The company has been granted more than 30 patents. From 2007 to 2011, Shanghai River-wave has been assredited with Contract Honoring and Credit Keeping Enterprise for consecutively four years. Meanwhile, River-wave has obtained the TS National Manufacturing License for Special Equipment and CE Certificate, CCS Certificate for ships, etc.
Core Value of Shanghai River-wave: Satisfied customers, happy employees, assured Stockholder, stainable development.
