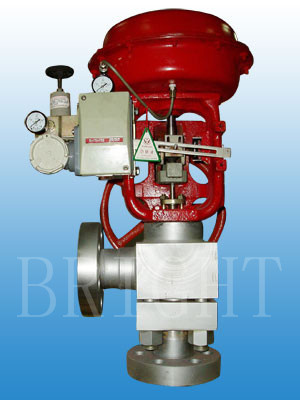

| Price: | US $ 200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Flow characteristics | HFS/HFAS HFC/HFAC | Refer to Fig. 1 and Fig.2 of the Catalogue for Pneumatic High Pressure Forged Control Valve for EQ% characteristic(%CF) and linear characteristic(LCF) | |
Leakage | HFS/HFAS | Hard seal:Class IV | Less than 0.01% of the rated capacity |
| HFC/HFAC | Hard seal:Class III | Less than 0.01% of the rated capacity | |
Adjustable range | HFS/HFAS HFC/HFAC | 50:1 | |
| Nominal Dia. | mm | 25 | 40 | 50 | 65 | 80 | |
| inch | 1 | 1.5 | 2 | 2.5 | 3 | ||
Model | HFS/HFAS | Δ | Δ | Δ | Δ | Δ | |
| HFC/HFAS | / | Δ | Δ | Δ | Δ | ||
| Nominal Dia. | mm | 100 | 125 | 150 | |||
| inch | 4 | 5 | 6 | ||||
Model | HFS/HFAS | / | / | / | |||
| HFC/HFAS | Δ | Δ | Δ | ||||
Nominal Pressure | PN | 220,320 | |||||
| ANSI | CL900,CL1500,CL2500 | ||||||
Connection | Flanged | ||||||
Body type | Straight-way single seat forged globe valve | ||||||
Gland type | Bolt clamping | ||||||
Plug type | HFS/HFAC | Single-seat plunger | |||||
| HFC/HFAC | Pressure balanced structure | ||||||
Bonnet temp. | Normal (P) | -17~ +230ºC | |||||
| ExtensionI(EI) | -45~ -17ºC,+230~ +566ºC | ||||||
| ExtensionII(EII) | -100~ -45ºC | ||||||
| ExtensionIII(EIII) | -196~ -100ºC | ||||||
Chinese Standard | American Standard | |
Quality assurance | ISO9001,TS2710J59 | ISO9001 |
Design and manufacture | GB12224-2005 | ASME B16.34 |
Flange standard | HG20592-2009 | ASME B16.5 |
Length of structure | GB12221-2005 | ASME B16.10 |
Inspection and test standard | GB/T4213-2008 | API598 |
Temp ºC | Nominal Pressure | |||||||||||
| CL900 | CL1500 | CL2500 | ||||||||||
| A105 | 304 | 316 | 316L | A105 | 304 | 316 | 316L | A105 | 304 | 316 | 316L | |
| Classified working pressure MPa | ||||||||||||
| -29~38 | 15.8 | 15.8 | 15.8 | 14.1 | 26.3 | 26.3 | 26.3 | 23.5 | 43.9 | 43.9 | 43.9 | 39.1 |
| 93 | 15.8 | 14.1 | 14.5 | 11.9 | 26.3 | 23.5 | 24.2 | 19.8 | 43.9 | 39.1 | 40.4 | 33.1 |
| 149 | 15.8 | 12.6 | 13.1 | 10.7 | 26.3 | 21.1 | 21.9 | 17.8 | 43.9 | 35.1 | 36.5 | 29.6 |
| 204 | 15.8 | 11.7 | 12.0 | 9.7 | 26.3 | 19.4 | 20.0 | 16.2 | 43.9 | 32.4 | 33.3 | 27.0 |
| 260 | 15.8 | 10.9 | 11.2 | 9.0 | 26.3 | 18.2 | 18.6 | 15.0 | 43.9 | 30.4 | 31.1 | 25.0 |
| 315 | 15 | 10.3 | 10.6 | 8.5 | 25 | 17.1 | 17.7 | 14.1 | 42 | 28.6 | 29.5 | 23.5 |
| 343 | 14.7 | 10.1 | 10.4 | 8.2 | 24.6 | 16.8 | 17.3 | 13.7 | 41 | 28.0 | 28.9 | 22.8 |
| 371 | 14.6 | 9.9 | 10.2 | 8.0 | 24.4 | 16.5 | 17.0 | 13.4 | 40.6 | 27.6 | 28.3 | 22.3 |
| 399 | 13.3 | 9.8 | 10.0 | 7.8 | 22.1 | 16.3 | 16.7 | 13.1 | 36.9 | 27.1 | 27.8 | 21.8 |
| 427 | 10.9 | 9.5 | 9.9 | 7.7 | 18.1 | 15.8 | 16.5 | 12.9 | 30.1 | 26.3 | 27.6 | 21.5 |
| 454 | - | 9.3 | 9.9 | - | - | 15.5 | 16.4 | - | - | 25.8 | 27.3 | - |
| 482 | - | 9.1 | 9.8 | - | - | 15.2 | 16.3 | - | - | 25.3 | 27.1 | - |
| 510 | - | 9.0 | 9.7 | - | - | 14.9 | 16.1 | - | - | 24.8 | 26.8 | - |
| 538 | - | 8.6 | 8.8 | - | - | 14.3 | 14.8 | - | - | 23.8 | 24.6 | - |
| Prod Model: | HFS/HFC /HFAS/HFAC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: | 25mm (1")-200mm(8") |
| Nominal Pressure: | Pn15MPa (Cl900) -Pn42MPa (Cl2500) |
| Material: | CS, S.S, Alloy Steel |
