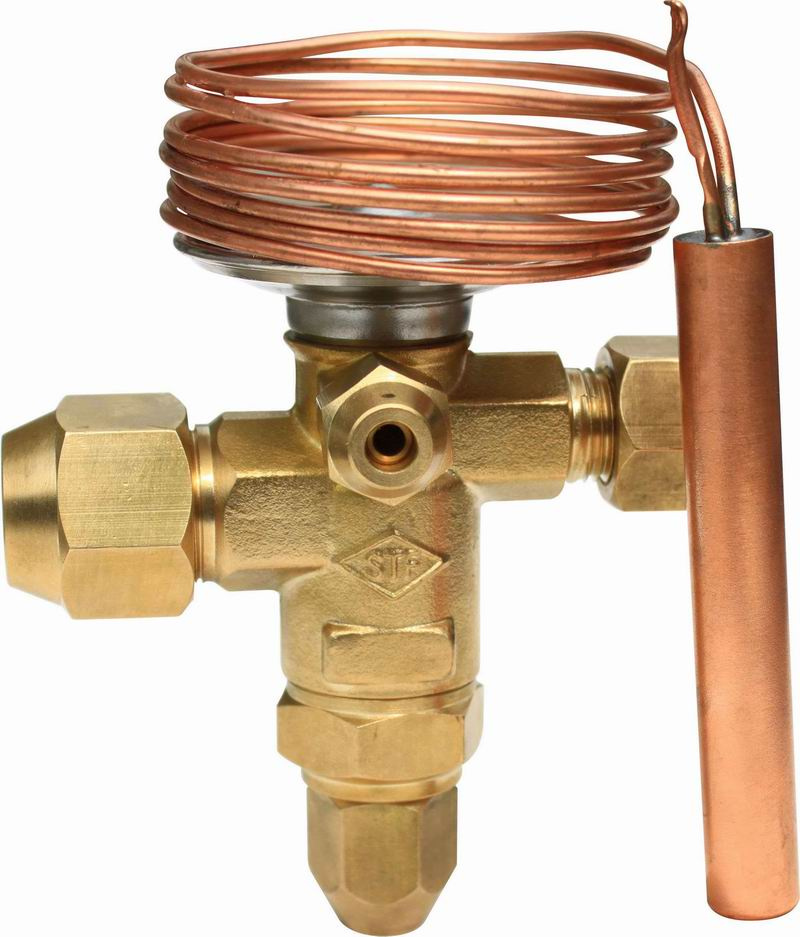

Suitable for: R410A
Max Working Pressure: 45bar
Evaporating temperature range: +15— - 40 degree.
Static superheat adjusting range: 1K— 8K
Max operating superheat: 8K
Superheat adjusting:
Factory setting static superheat is 4K, the adjusting range is 1K— 8K.
How to adjust: Take off cap and turn adjusting stem, turn adjusting stem clockwise one round, increases superheat 1.5K, Turn adjusting stem anticlockwise one round, then reduces superheat 1.5K.
7. Pressure balance type:
"E"stands for External Equalizer, No"E"stands for Inner Equalizer.
|
Model |
Nominal CapacityKW |
inlet |
outlet |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
H
mm |
External Equalizer |
Capillary Length |
|
NRF(E) 1Z |
3.52 |
10 or 3/8
SAE
|
12 or 1/2
SAE
|
102 |
61 |
115 |
71 |
55 |
26 |
13 |
89 |
6×1 OR
1/4SAE
OR
1/4ODF |
1.5m |
NRF(E) 1-1/2Z
|
5.28 |
NRF(E) 2Z
|
7.04 |
NRF(E) 2-1/2Z
|
8.80 |
NRF(E) 3Z
|
10.56 |
NRF(E) 4Z
|
14.08 |
NRF(E) 5Z
|
17.60 |
NRF(E) 6-1/2Z
|
22.88 |
NRF(E) 7-1/2Z
|
26.40 |
NRF(E) 9Z
|
31.68 |
10 OR 3/8
SAE
|
16 OR 5/8
SAE
|
NRF(E) 10Z
|
35.20 |
12 OR 1/2
SAE
|
16 OR 5/8
SAE
|
NRF(E) 12Z
|
42.24 |
NRF(E) 14Z
|
49.28 |
NRF(E) 16Z
|
56.32 |
NRF(E) 18Z
|
63.36 |
NRF(E) 20Z
|
69.70 |
