| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
l Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
l Wide choices of coils for A.C. and D .C
l Suitable for all fluorinated refrigerants.
l Opening pressure diff.:
Pilot type Direct-acting type
AC:0.05-21bar AC:0-21bar
DC:0.05-17bar DC:0-17bar
l Max working pressure:30bar.
l Temperature of medium :-25ºC~105ºC.
l FDF is also available with flange connections.
l Versions with UL and CUL approval can be supplied to order.
1)Our advantage:
We are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.
Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation withCarrier,ALCO, Johnson Controls has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7)All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Shanghai Thermostat , we are always ready!
| Model |
Form of Connection |
Connection Size | Opening diff. pressure(bar) |
Kv Value m 3 /h |
Max working pressure (bar) |
Dimensions(mm) |
Rated power (V) |
||||||
|
mm ODF |
in ODF |
Min |
Max(liquid) |
L mm |
W mm |
H mm |
AC (V) |
DC (V) |
|||||
|
50/60Hz AC |
DC | ||||||||||||
| FDF3G | ODF | 6 | 1/4 | 0 |
28 |
24 |
0.27 |
45 |
117 | 31 | 76 |
24 36 110 220 |
12 24 110 220 |
| 10 | 3/8 | ||||||||||||
| FDF6MG | 10 | 3/8 | 0.05 | 0.6 | 127 | 32 | 80 | ||||||
| 12 | 1/2 | ||||||||||||
| FDF8MG | 10 | 3/8 | 1.0 | 137 | 38 | 88 | |||||||
| 12 | 1/2 | 137 | |||||||||||
| 16 | 5/8 | 162 | |||||||||||
| FDF10MG | 12 | 1/2 | 1.8 | 137 | 45 | 88 | |||||||
| 16 | 5/8 | 166 | |||||||||||
| FDF15MG | 16 | 5/8 | 3 | 174 | 52 | 96 | |||||||
| 19 | 3/4 | ||||||||||||
| 22 | 7/8 | ||||||||||||
| FDF20MG | 22 | 7/8 | 5 | 190 | 58 | 115 | |||||||
| 22 | 7/8 long | 230 | |||||||||||
| 28 | 9/8 | 250 | |||||||||||
| FDF25MG | 28 | 9/8 | 9.8 | 236 | 72 | 119 | |||||||
| 35 | 11/8 | ||||||||||||
| FDF32MG | 35 | 11/8 | 15 | 281 | 86 | 133 | |||||||
| 42 | 13/8 | ||||||||||||
| FDF40MG | 42 | 13/8 | 25 | 312 | 126 | 158 | |||||||
| 54 | 17/8 | ||||||||||||

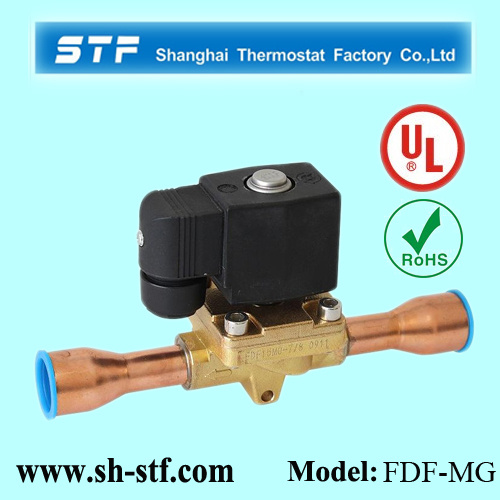

| Prod Model: | FDF-MG |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Pressure: | 45bar |
| Temperature Of Medium: | -25c~105c |
| Voltage DC: | 12V, 24V, 110V, 220V |
| Voltage AC: | 36V, 24V, 110V, 220V |
| Mopd: | 15~21bar |
| Certificate: | UL/cUL |
| Valve Type: | Refrigeration Solenoid Valve |
| Connection: | Welding |
| Port: | All Port |
| Medium: | R22,R134A,R404/507,R134A |
| Type: | Pilot Operated |
| Connection Form: | Tubular |
| Valve Structure: | Direct Action Diaphragm Structure |
| Application: | Household Usage |
| Power Supply: | AC and DC |
| Usage: | Refrigeration |
