Detailed Product Description:

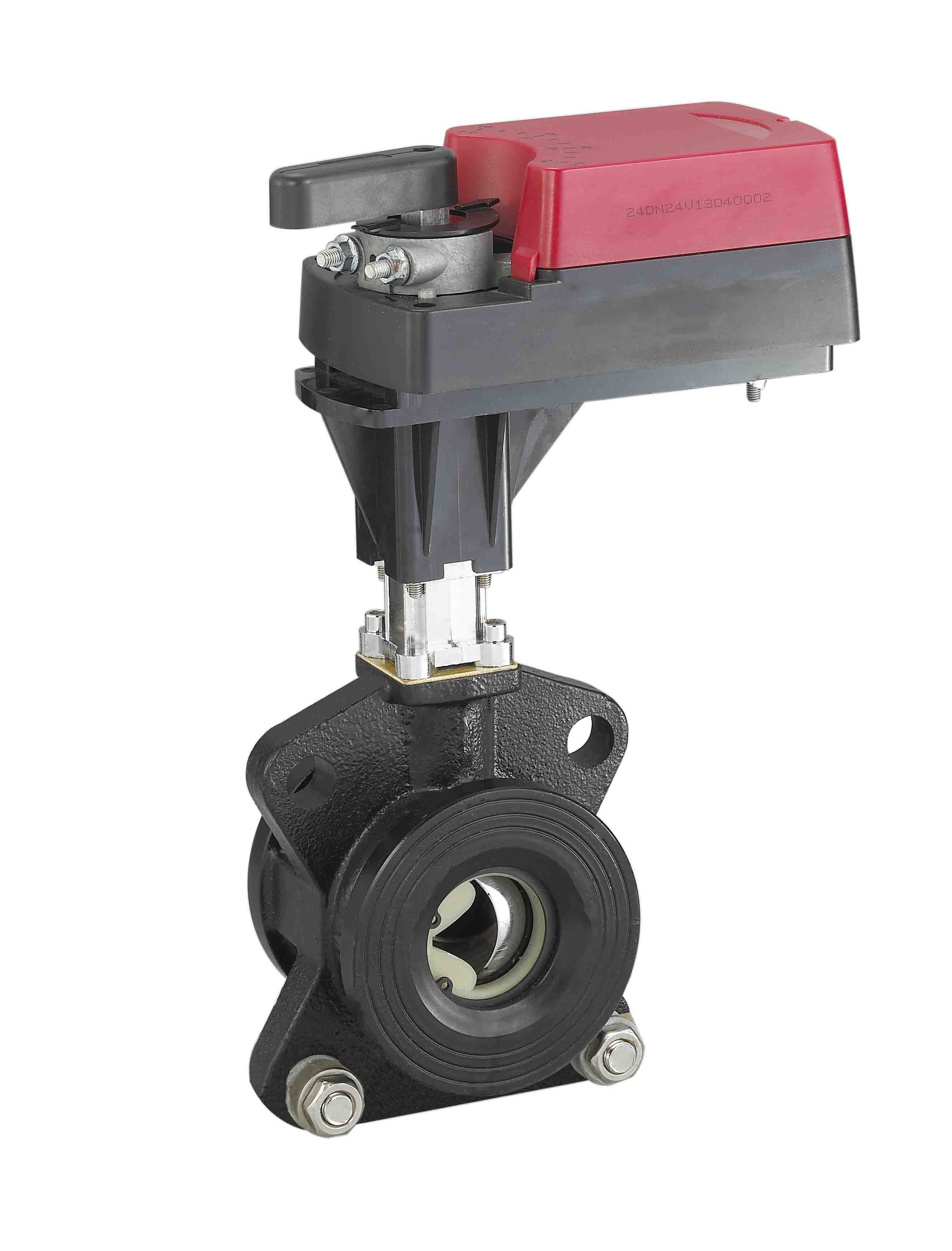

Rotary damper valve catuator:
Non-spring return
4N. M 8N. M 16N. M 24N. M 32 N. M
AC/DC 24V, AC110V, AC220V
1. Install directly and need'nt the linked apparatus, saveing the time and cost of installation
2. The circuit possesses the function of electric overloading protection, and it doesnt need localized switch. Therefore thisi reduce the consumption of power and improves the actuations reliability.
3. Hand switch control, simplify the spot modulationg of equipment, permit the hand localized on the emergent situation.
4. Provide the simple way for spot modulation
5. Tangible location of baffle plate
Model | HLF02 04D | HLF02 08D | HLF02 16D | HLF02 24D | HLF02 32D | HLF02 04A | HLF02 08A | HLF02 16A | HLF02 24A |
Output Torque | 4Nm | 8Nm | 16Nm | 24Nm | 32Nm | 4Nm | 8Nm | 16Nm | 24Nm |
Max Baffle Plate size | 1m | 2m | 4m | 6m | 6m | 1m | 2m | 4m | 6m |
Time for Rotating 90° | 35S | 30S | 80S | 125S | 140S | 35S | 30S | 80S | 125S |
Modulating Scope | 0~90° (In 5°Incerments) |
Operating Voltage | 24VAC/24VDC AC220V~230V 50/60Hz AC110V 50/60Hz |
Power Rating | 4W | 3.9W/4.8W | 4W | 2.5W | 4W/4.8W |
Control Input | 2/3( Flocating Points) | 0~10VDC 4~20mA |
Position Output | | 0~10VDC 4~20mA |
Driving Shafts | 8~32Nm Cylinder shaft size: φ20mm; Square shaft size: 16x16mm |
4Nm Cylinder shaft size: φ16mm; Square shaft size: 12x12mm |
Housing | ABS engineering plastic |
Ambient Temperature | Operation:-20~+50°C Storage:-40~+80°C |
Relative Humidity | 0~90%RH |
Protection | IP54 |
Noise Grade | 45Db (A) |
Net Weight | 8~32Nm: 1.1kg 4Nm :0.7kg |
Certificate | CE, ISO9001 |
Usage life | 60,000 |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
