Quick Details
Standard or Nonstandard: Standard

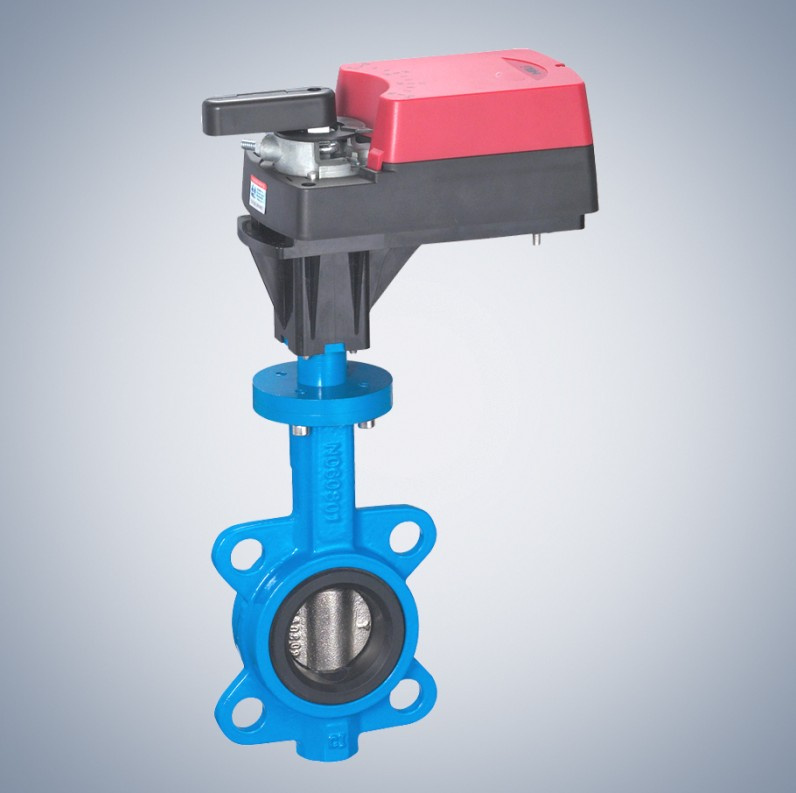

Structure: Butterfly
Pressure: Low Pressure
Power: Electromotion
Material: ABS engineering plastic
Temperature of Media: Low Temperature
Media: Water
Place of Origin: Zhejiang, China (Mainland)
Model Number: HLF02
Brand Name: HELI
Packaging & Delivery
Packaging Details: Foam package inside, Carton outside
Delivery Detail: Within 7 days after receiving payment
Model |
HLF02
04D |
HLF02
08D |
HLF02
16D |
HLF02
24D |
HLF02
32D |
HLF02
04A |
HLF02
08A |
HLF02
16A |
HLF02
24A |
Output Torque |
4Nm |
8Nm |
16Nm |
24Nm |
32Nm |
4Nm |
8Nm |
16Nm |
24Nm |
Max Baffle Plate size |
1m |
2m |
4m |
6m |
6m |
1m |
2m |
4m |
6m |
Time for Rotating 90° |
35S |
30S |
80S |
125S |
140S |
35S |
30S |
80S |
125S |
Modulating Scope |
0~90° (In 5°Incerments) |
Operating Voltage |
24VAC/24VDC AC220V~230V 50/60Hz AC110V 50/60Hz |
Power Rating |
4W |
3.9W/4.8W |
4W |
2.5W |
4W/4.8W |
Control Input |
2/3( Flocating Points) |
0~10VDC 4~20mA |
Position Output |
|
0~10VDC 4~20mA |
Driving Shafts |
8~32Nm Cylinder shaft size: φ20mm; Square shaft size: 16x16mm |
4Nm Cylinder shaft size: φ16mm; Square shaft size: 12x12mm |
Housing |
ABS engineering plastic |
Ambient Temperature |
Operation:-20~+50°C Storage:-40~+80°C |
Relative Humidity |
0~90%RH |
Protection |
IP54 |
Noise Grade |
45Db (A) |
Net Weight |
8~32Nm: 1.1kg 4Nm :0.7kg |
Certificate |
CE, ISO9001 |
Usage life |
60,000 |
