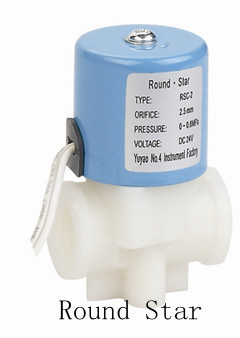

Rsc Water Dispenser Series Solenoid Valve

Name: Rsc Water Dispenser Series Solenoid Valve
Brand: Valve Industry
SKU: 714984625
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 1.6/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Yuyao No.4 Instrument Factory

Showroom Product Company Profile

Quick Details

Standard or Nonstandard: Standard
Structure: direct acting
Pressure: Medium Pressure
Power: Solenoid
Material: plastic
Temperature of Media: Normal Temperature
Media: Water
Port Size: 1/4"NPT and G
Place of Origin: Zhejiang, China (Mainland)
Model Number: RSC-2 push fitting series
Brand Name: Round Star
body color: white and black
why us?: more than 40 years since 1965
company value: to make wealth for our society,to make wealth for society and the values of employees realized
Function: an electromechanical valve for use with liquid or gas
certificate passed: CE, ISO, ROHS
Company spirit: to challenge our future and pursue and surpass ourselves
Company style: to be faithful,practical, coorperative and efficient
Market conception: what we do will be based on the market and customers

Packaging & Delivery

Packaging Details:carton box

Delivery Detail:within 5~30days after receiving your funds

<:article id=richTextContainer class="article detailDescription richTextDescription AE:disable">

Specifications

24v solenoid valve
1) 2/2 plastic body material.
2) mini solenoid valve
3) it is for drinking machine
24V solenoid valve

Direct Acting Poppet, Normally Closed DN 2.5mm,DN8mm, 10mm,12mm.
Direct acting normally closed solenoid poppet valves available either AC or DC operated in plastic body. High flow with stainless steel seat and soft magnetic alloy and EPDM disc for hot water applications. Field replaceable seat/orifice design for flexibility.

-- Media: Water, Air, Vacuum

--Temperature: 0 ÷ 100

--Function type: Normally Closed (N/C)

--Mode of action: Direct acting type

--Body material: PP + Fiber glass

-- Sealing material: EPDM

--Protection class: IP54

Model		RSC-1	RSC-2	RSC-8	RSC-10
G Connection		1/8"	1/4"	Hose connectionΦ12	Hose connectionΦ14
Orifice Size	mm	2.5		8	10
Cv Value		0.21		1.3	2.3
L	mm	38		65	69
H	mm	66.5		61.5	61.5
H1	mm	49		53.5	53.5
Pressure	bar	0 ~ 8		600mm water-column
Medium temperature		0 ~100
Power		AC:220/50-60HZ 6.8VA ; DC:24V,6.5W Range:±10%,

Model	Adapter tube size mm	orifice size mm	Cv value	L mm	H mm	W mm	pressyre(bar)	voltage	reaction time
RSC-8	12	8	1.3	65	61	25	600mm water pressure	110V~240V AC DC24V ~12V	6~20 millisecond
RSC-10	14	10	2.3	69	61	27	600mm water pressyre		6~20 millisecond
RSC-12	13	12	3.0	59	70	17	600mm water pressur		6~20 millisecond

Prod Model:	RSC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Direct Acting
Connection Form:	Thread
Valve Structure:	Direct Action Diaphragm Structure
Power Supply:	DC Solenoid Valve
Application:	Water Industrial Usage

Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.

With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.

We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
