-- Media: Water, Air, Gas, Oil (below 20cst)
--Temperature: -10 ÷ 80º C
-- Pressure: N/C: 13bar; N/O: 8bar
--Mode of action: Pilot operated
--Body material: stainless/Brass
-- Sealing material: NBR
--Protection class: IP65
--Function type: Normally Closed (N/C), Normally Open(N/O)

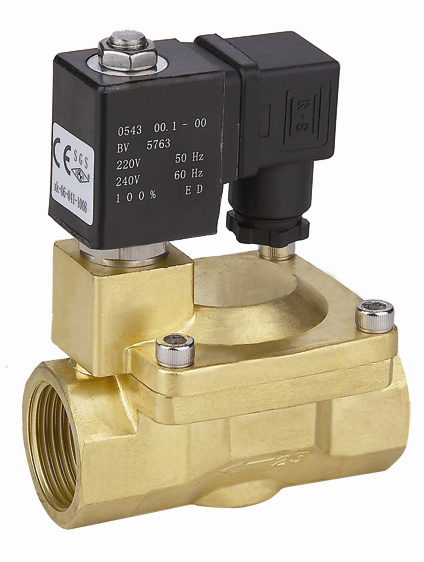

the brass one just like this one
|
Model |
RSP-J-10 |
RSP-J-15 |
RSP-J-20 |
RSP-J-25 |
RSP-J-35 |
RSP-J-40 |
RSP-J-50 |
|
G Connection |
3/8" |
1/2" |
3/4" |
1" |
1¼ " |
1½ " |
2" |
|
Orifice Size |
mm |
13 |
15 |
20 |
25 |
35 |
40 |
50 |
|
Cv Value |
4.5 |
4.5 |
7.6 |
12 |
22 |
30 |
48 |
|
L |
mm |
66.5 |
66.5 |
75 |
96 |
131 |
131 |
165 |
|
H |
mm |
112.5 |
112.5 |
118 |
124.5 |
137 |
150 |
167 |
|
H1 |
mm |
96.5 |
96.5 |
98 |
104.5 |
112 |
130 |
130 |
|
Medium temperature |
-10 ÷ 80& ordm; C
|
|
Pressure |
bar |
Normally closed : 0.5~13; Normally Open: 0~8 |
|
MAX. Pressure |
bar |
17bar |
|
Power |
AC: 220V~AC: 230V/50-60HZ 17VA; AC110 ~AC: 120V/50-60HZ 13VA; DC24, 11 W; DC12V 14W ; Range: ± 10% |
|
Body material |
Stainless: SUS304 or SUS316 |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.
Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
