Product Description

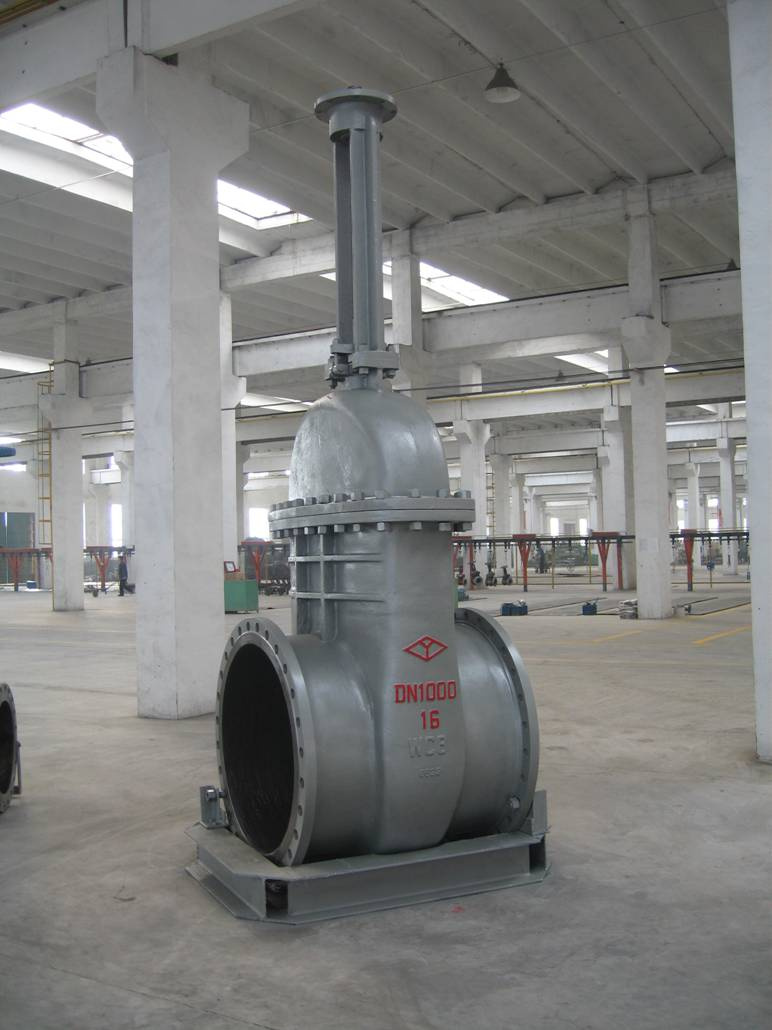

Z41H-16C GOST Cuniform Gate Valve Quick Details
Standard or Nonstandard: Standard
Structure: Gate,Stem gate valve
Pressure: Low Pressure
Power: Manual
Material: Casting,WCB
Temperature of Media: Medium Temperature
Media: Base
Port Size: DN50-DN400
Place of Origin: Hebei, China (Mainland)
Model Number: Z41H-16C
Brand Name: PYL
Terms of trade: Manufacturer
Certificate: ISO14001,ISO9001
PN: 1.6
Strength(water)(Mpa): 2.4
Enclose(water)(Mpa): 1.76
Suitable temperature: ≤425
Suitable medium: Water,Vapour,Oil
Market: Russia,Ukraine,America,India,Germany and so on
Z41H-16C GOST Cuniform Gate Valve Packaging & Delivery
Packaging Details:
1.woven bag in twenty-foot container
2.put into wooden case 3.pallet
Delivery Detail:7-20days or according your requirement
Z41H-16C GOST Cuniform Gate Valve Material
Parts | Material |
wheel | Ductile iron |
Yoke nut | Ductile iron |
Stem | stainless steel |
Packing el | Graphite |
Disc | stainless steel |
Valve body | WCB 20#steel |
Sealing | Stainless steel |
Z41H-16C GOST Cuniform Gate Valve outline and connecting measurement
Type | Nominal pressure(mm) | Measurement(mm) | Reference Weight(kg) |
L | D | H | |
Z41H-16C | 50 | 180 | 160 | 285 | 12.7 |
Z41H-16C | 80 | 210 | 195 | 337 | 20.5 |
Z41H-16C | 100 | 230 | 215 | 383 | 27 |
Z41H-16C | 150 | 280 | 280 | 522 | 52 |
Z41H-16C | 200 | 330 | 335 | 647 | 80 |
Z41H-16C | 250 | 450 | 405 | 815 | 119 |
Z41H-16C | 300 | 500 | 460 | 886 | 156 |
Z41H-16C | 400 | 600 | 580 | 1241 | 156 |
Z41H-16C GOST Cuniform Gate Valve Specification
Type | Nominal pressure(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium |
Z41H-16C | 1.6 | Strength (water)2.4 | Enclose(water)1.8 | ≤425 | Vapour ,Water,Oil |
