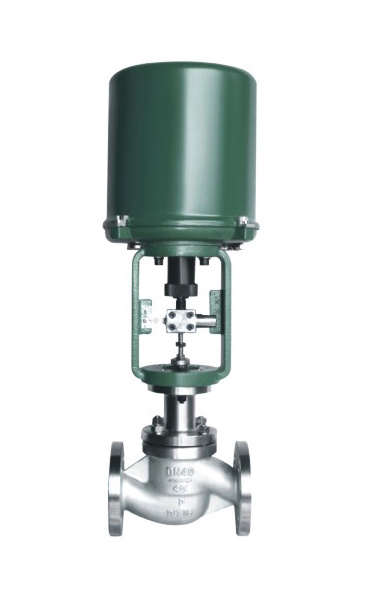

RV ZRSP(M) electric single-seat control valve has the advantage of small leakage; However, its umbalanced force is larger; Therefore, the working pressure difference is not suitable to be over high. As a balanced valve plug structure is adopted by an electric sleeve control valve, the unbalanced thrust acted on a valve stem is less, the allowalbe using pressure difference is bigger. Under the same work conditions, compared with the single-seat control valve, the sleeve valve has better plug stability, and is not easy to generate vibrationl; When the using temperature is changed, the leakage volume of the sleeve valve is not significantly different from that during normal temperature.
|
Nominal Diameter(mm) |
L(mm) |
H1(mm) |
H(mm) |
D |
H2 |
|
PN(MPa) |
PN(MPa) |
Ambient Temperature |
Sen Heat |
|
PN(MPa) |
PN(MPa) |
|
0.6~4.0 |
4.0 |
6.4 |
0.6 |
1.6 |
4.0 |
6.4 |
0.6 1.6 |
4.0 |
6.4 |
4.0 |
6.4 |
255 |
6.4 |
|
G3/4 |
120 |
120 |
120 |
31 |
31 |
31 |
|
|
|
|
|
|
255 |
260 |
|
20 |
181 |
194 |
206 |
45 |
52.5 |
52.5 |
65 |
546.5 |
546.5 |
556.5 |
696.5 |
706.5 |
255 |
260 |
|
25 |
184 |
197 |
210 |
50 |
57.5 |
57.5 |
70 |
563.5 |
563.5 |
573.5 |
715.5 |
725.5 |
255 |
260 |
|
32 |
200 |
215 |
230 |
|
70 |
70 |
77.5 |
576 |
576 |
5860 |
728 |
7330 |
255 |
260 |
|
40 |
222 |
235 |
252 |
65 |
75 |
75 |
85 |
720.5 |
720.5 |
730.5 |
900.5 |
910.5 |
255 |
260 |
|
50 |
254 |
267 |
286 |
70 |
82.5 |
82.5 |
90 |
735 |
735 |
742.5 |
915 |
922.5 |
310 |
260 |
|
65 |
276 |
292 |
311 |
80 |
95.5 |
95.5 |
102.5 |
843 |
843 |
853 |
1045 |
1053 |
310 |
370 |
|
80 |
298 |
317 |
337 |
95 |
100 |
100 |
107.5 |
861.5 |
861.5 |
869 |
1061.5 |
1069 |
310 |
370 |
|
100 |
352 |
368 |
394 |
105 |
110 |
117.5 |
125 |
9882.5 |
882.5 |
900 |
1090 |
1100 |
310 |
370 |
|
125 |
400 |
425 |
450 |
125 |
125 |
135 |
165 |
902.5 |
907.5 |
940 |
1107.5 |
1140 |
310 |
370 |
|
150 |
451 |
473 |
508 |
132.5 |
142.5 |
150 |
172.5 |
1189 |
1199 |
1434 |
1434 |
1454 |
310 |
370 |
|
200 |
600 |
610 |
650 |
160 |
170 |
187.5 |
27.50 |
1240.5 |
1260.5 |
1495.5 |
1495.5 |
1510.5 |
310 |
370 |
|
250 |
730 |
730 |
775 |
187.5 |
202.5 |
187.5 |
235 |
1305 |
1330 |
1552 |
1552 |
1570 |
310 |
370 |
|
300 |
745 |
850 |
900 |
220 |
230 |
225 |
265 |
1512 |
1532 |
1550 |
1670 |
1685 |
310 |
370 |
