Screw Down Style Isolating Valve; Fire Hydrant Isolating Valve
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

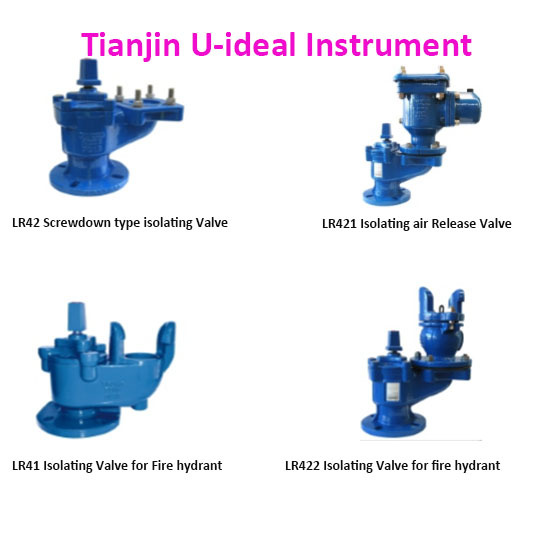

Tianjin U-ideal Screwdown style isolating Valve;Fire hydrant Isolating Valve
Screwdown style isolating Valve: round thread outlet Squat model
? Designed for hydrant and air valve control
? Suited for use with water, sewerage and neutral liquids
? Universal slotted flange drilling suits both 80 mm and 100 mm flanges
? Epoxy resin coated ductile iron
? EPDM rubber stopper
The design and installation of hydrant systems should be closely correlated with all other services being provided in the building, and ducts may be shared. The water supply to hydrants should be kept entirely independent from other water supplies including those for other fire-fighting systems.
Hydrant systems should be afforded all possible protection against frost
Air Valves vs. Hydrants
There is a common misconception that fire hydrants can be used in place of combination air valves to provide the required air-release service. This method should be strongly discouraged for several reasons:
The use of fire hydrants requires active user intervention, which creates a hidden maintenance cost. In order to be effective, the hydrants should be discharged once per day. At just five minutes per hydrant at a rate of $10.00 per hour, a small town with twenty hydrants would spend more on the labor used than it would have spent on twenty automatic air valves.
Manual air release cannot accommodate surges in flow or demand. Only automatic air valves can provide the needed functions on demand in order to protect the water system.
Hydrants cannot provide the vacuum-breaking function required to prevent contamination during negative-pressure events. Automatic air valves help protect the finished water at all hours, every day of the year.
The pressures accumulated within the hydrant, even at a system pressure of 80 psi, can be extremely hazardous to maintenance workers. Accumulated pressures in some systems can reach more than ten times the rated system water pressure. Automatic air valves work without user intervention and prevent the accumulation of pressure.
Hydrants are typically mounted to the sides of a main (at the 3 o'clock and 9 o'clock positions), rather than at the top. This can significantly reduce their effectiveness as air-release devices, even when flanged at the full diameter of the main. Automatic air valves are properly installed only at the top (12 o'clock) position, where they can provide complete discharge of accumulated air
| Origin | Tianjin China |
| Brand | Tianjin U-ideal Instrument |
| Connection | Flange or thread |
| Export Markets | Global |
| Packing | Wooden Case or Carton |
| About us | Our company is specialized in the manufacture of valves,
,flow meters,level gauges,etc |
| Why Choose us |
| Rich experience | We have been engaged in machining for many years. Our company had good reputation with customers from American, Europe, North America, and Australia, India etc. We also have a good team for sale and quality control. |
| Good service | We will respond to you within 24 hours. We manufacture non-standard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us. |
| Low price | The prices of our production are reasonable! The prices will be much better if your quantity is good. |
| Perfect quality | We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management. |
| Contact |
If you have any question or requirements, please don't hesitate to contact us.
Tel: 86-22 88971536
Fax: 86-22 88971536 |
| Prod Model: |
LR42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
Dn40~300mm |
| Pressure: |
Pn0.6~2.5MPa |
| Temperature: |
0-70degree Centigrade |
| Standard.: |
GB, DIN, ANSI, GOST, JIS, BS |
| Material.: |
Carbon Steel, Stainless Steel, Aluminium Bronze, Et |
| Type: |
Outdoor Fire Hydrant |
| Rotation: |
Ordinary Bolt |
| Outdoor Fire Hydrant Type: |
High-Pressure Fire Hydrant |
| Fire Hydrant Type: |
Ordinary |
