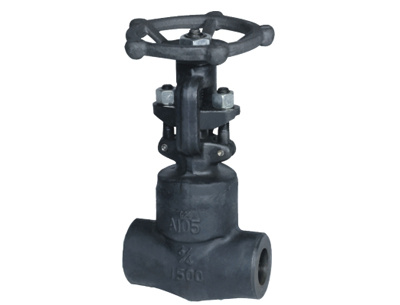

Screwed and Sw Forged Steel Globe Valves

Screwed and SW Forged Steel Globe Valves

Standard compliance:
1) Design and manufacture: API602, BS5352
2) Test and inspection: API598
3) Socket weld end: ANSI B16.11
4) Screwed end: ANSI B1.20.1

Specifications:
1) Size: 1/4" to 3"
2) Class: 150LB to 2500LB
3) Type: Forged Steel gate valves, ball valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Screwed end or SW end.
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc.
5) Operation: Handwheel


Forged Steel globe Valve           Class 800 / 1500 / 2500

Bolted bonnet or welded bonnet, Outside screw & yoke, Reduced port or full port
Description:
Design and manufacture: API 602 & ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 2 "
Standard materials: A105, LF2, F5, F11, F22,   F304, F304L, F316, F316L etc.
Standard materials of parts

No.	Parts	Materials
1	Body	A105
2	Bonnet	A105
3	Stem	A276-410
4	Disc	A276-420
5	Bonnet bolt	A193-B7
6	Gasket	304 + Graphite
7	Gland	A276-410
8	Packing	Graphite
9	Gland flange	WCB
10	Gland bolt	A276-410
11	Gland bolt nut	A194-2H
12	Gland bolt pin	A276-410
13	Sleeve	A276-410
14	Hand wheel	A197
15	Name plate	Aluminum
16	Hand wheel washer	A108-1020
17	Hand wheel nut	A194-2H

Dimensions (in mm & inch) and weight

Class 800

Nominal	Reduced Port	mm(in)	8(1/4)	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1.1/4)	40(1.1/2)	50(2)	-
diameter	Full Port	mm(in)	-	-	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1.1/4)	40(1.1/2)	50(2)
d		mm	8	10	10	13	17	23	30	37	46
L		mm	79	79	79	92	111	130	152	172	200
H (Open)		mm	176	176	176	176	212	230	254	294	327
W		mm	100	100	100	100	125	160	160	180	200
Weight	B.B.	Kgs	2.2	2.1	1.9	2.1	3.9	5.8	7.2	10.8	16
	W.B.	Kgs	1.9	1.8	1.7	2.1	3.7	5.2	6.2	10.4	14.8

Class 1500

Nominal	Reduced Port	mm(in)	8(1/4)	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1.1/4)	40(1.1/2)	50(2)
diameter	Full Port	mm(in)	-	-	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1.1/4)	40(1.1/2)
d		mm	7	7	10	13	17	23	30	37
L		mm	111	111	111	111	130	152	172	220
H (Open)		mm	207	207	207	207	240	258	290	337
W		mm	125	125	125	125	160	160	180	200
Weight	B.B.	Kgs	4.9	4.9	4.7	4.6	6.8	9.2	13.6	20.9
	W.B.	Kgs	4.3	4.3	4.1	4	6.2	8.6	12.7	19.1

Class 2500

Nominal diameter	mm(in)	15(1/2)	20(3/4)	25(1)	32(1.1/4)	40(1.1/2)	50(2)
d	mm	11	14	19	29	29	36
L	mm	130	130	172	220	220	240
H (Open)	mm	227	227	288	330	330	360
W	mm	160	160	160	200	200	220
Weight	Kgs	8	8	17	26	25	34

All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.

Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
