Pneumatic pressure control valve is the most important actuator product in. production process control system. This series product ZJHP type pneumatic small type single-seat control valve and ZJHM type pneumatic small sleeve valve is one of the universal product available for users to choose, it is suitable for various fluid media and process conditions of the process control system.

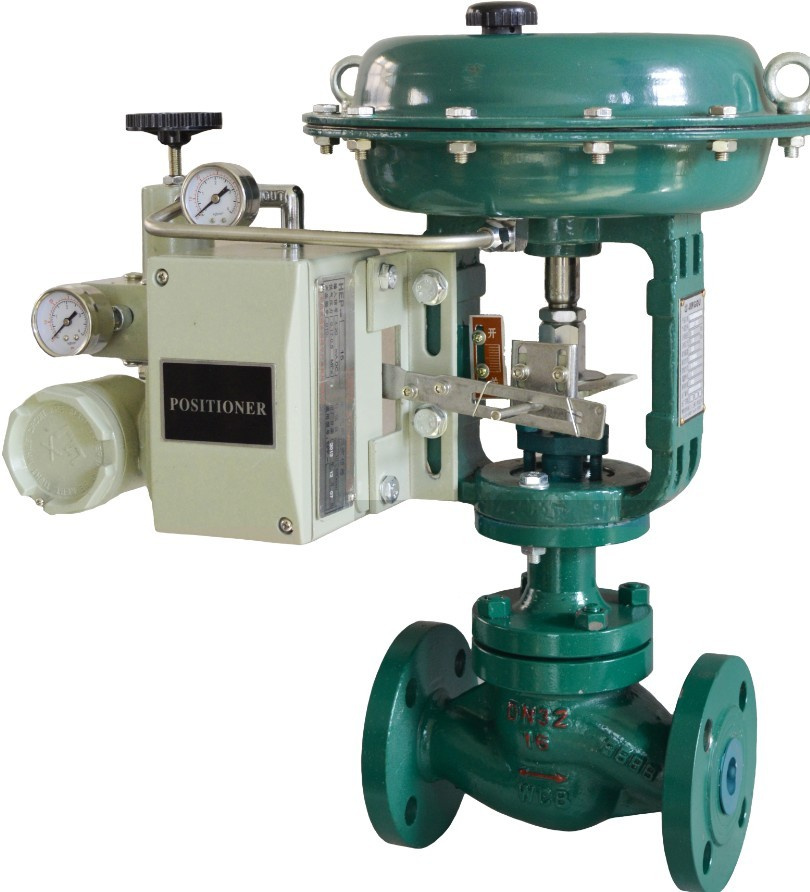

With our design, our Pneumatic pressure control valve's height and weight are only 70% of other countries same function control valve. And the flow coefficient Kv value increased by 30%, so save both in material and in energy, is a new improved products.1. Working principle and structureZJHP type pneumatic single-seat control valve is consist of ZHA (B) pneumatic Multiple-springs diaphragm mechanism actuator and low flow resistance Straight-through single-seat valve. As shown in picture 1.
ZJHM type pneumatic sleeve control valve is consist of ZHA (B) pneumatic Multiple-springs diaphragm mechanism actuator and low flow resistance Straight-through sleeve valve. As shown in picture 2.
The outer pneumatic pressure signal transmit into membrane chamber, the pressure acts on the diaphragm and produce thrust, this force compress onto springs and makes a putter move and drive the valve stem which lead valve core ON or OFF, until the thrust and spring set force get balance and stable on a position. Above all, the valve core displacement is in proportion to the input pressure signal, so also called as pressure control valves.
Classify Pneumatic spring diaphragm actuator according to action mode, can be divided into positive action and reaction action two kinds. When the signal pressure increase, the push rod move out the membrane chamber, is positive action model ZHA; when signal pressure increase, the push rod back into the membrane chamber, is reaction type, model is ZHB. See to picture 1(a) and picture1 (b).
Classify the pneumatic control valve with switch mode, have air-to-close type and air-to-open two types. Air-to-close type is made of positive action actuator and valve. When the input signal pressure change from low limit to high limit, valve move from full open to full closed. Air-to-open valve is made of reverse action actuator and valve. When the input signal pressure change from low limit to high limit, valve move from full closed to full open. Details see to picture 1(a) and picture1 (b).
EPP series electric/pneumatic valve positioner Introduction:EPP
series electric/pneumatic valve positioner is a developed new type products which introduce advanced foreign technology. Is explosion-proof type.
The function of the positioner is to convert the electric signal (output by the control device) into pneumatic signal (drive the control valve action). Also the positioner has the function of the valve positioning: to overcome the friction of stem, balance out the unbalanced force which caused by pressure changes. So that the valve opening is corresponding to the control signal from control valve which realized the correct positioning.
Features:
1) Small size, light weight, and reliability;
2) Convenient for ZERO and SPAN adjustment, hand wheel type and with locking device.
3) With common installation plate and accessories which suitable for various other actuator.
4) Explosion-proof: intrinsic safety iaIICT5, flame proof dIICT6
|
Items |
Indicator |
|
Items |
Indicator |
|
Basic Error % |
Without positioner |
±5.0 |
Starting point and end point
Deviation % |
air to close |
Without positioner |
starting point |
±5.0 |
|
With positioner |
±1.0 |
With positioner |
starting point |
±1.0 |
|
end point |
±1.0 |
|
Return difference % |
Without positioner |
3.0 |
air to open |
Without positioner |
starting point |
±2.5 |
|
end point |
±5.0 |
|
With positioner |
1.0 |
With positioner |
starting point |
±1.0 |
|
end point |
±1.0 |
|
Dead zone % |
Without positioner |
3.0 |
Allowable leakage
L/h |
Single seat type |
1×10 -4 ×valve rated capacity |
|
With positioner |
0.4 |
|
rated stroke deviation % |
±2.5 |
Sleeve type |
1×10 -3 ×valve rated capacity |
|
Rated flow coefficient % |
±10 |
|
Inherent flow characteristic % |
Slope ±30 |
| Prod Model: |
ZJHM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Bellows Globe Valve |
