Product Description

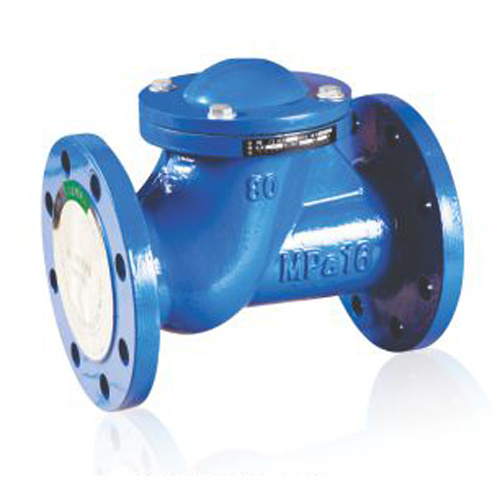

HQ41X sliding ball type check valve uses the steel ball coated rubber for the disc. Under the action of medium, the ball slide up and down in orbit scroll to open or close the valve. Sealed performance is good, large flow, small resistance. It can be used to the cold water, hot water, industrial and living sewage pipe. Medium temperature is 0-80 °C
A wide range of DUNHUI Check Valves includes Swing, Ball and Tilting type valves for Water and waste water applications. The valves are genrally equipped with lever and counterweight.
We have a strict and complete quality control system. The enough inspectors to ensure that each product can meet the quality requirements of customers. We do the final inspection in own factory with ISO 9001:2008.
It can be installed vertically or horizontally.
It's widely used in cold waters,hot waters,industrys and sewages ppipeline and it is more for sewage submersible pump.
Name | Ball Type Check Valve |
| Size | 50-350mm |
| Pressure | 1.0-1.6Mpa |
| Temperature | 0--80 |
| Media | water and weak corrosive fluid |
| Flange End | GB/T17241.6 GB9113 |
| Insepction and Test | GB/T 13927 API 598 |
Specifications
HQ41X sliding ball type check valve
1.DN50-DN350mm
2. Pressure level: 1.0Mpa-1.6Mpa
3. 3 years warranty
4. CCC, ISO
