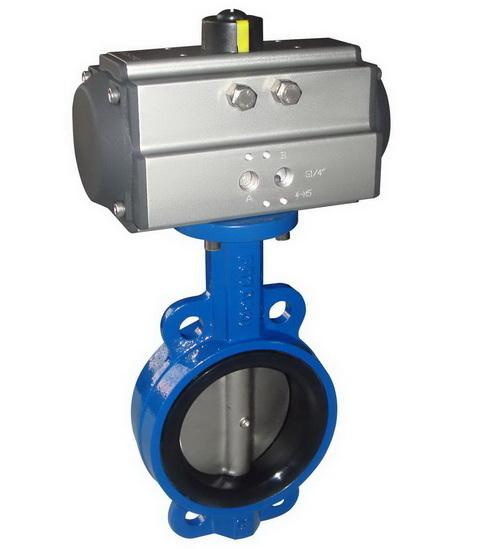

soft seal pneumatic wafer type butterfly valve
Pneumatic soft seal butterfly valve is combined with pneumatic actuators and central line of butterfly valves.
This product can according to the sealing performance into metal seal and soft seal with compact structure, small volume, reliable operation, good sealing, easy maintenance, installation convenient and the adoptability is strong advantages. Can be widely used in petroleum, chemical industry, light industry, papermaking industrial, pharmaceutical, car automatic control system on a remote concentrated or local control.
Product features:
1) Seal valve seat water line design, the valve palate seal surface graphic design, completely
avoid the recruitment phenomenon for the valve long time no open
2) The disc in holes in the up and down, adopt the ball type friction surface design, torque more
small, sealing better
3) Gentle slope type seat small torque with long service life
4) Flange clamp holes connection apply to many standard
1. Material
Body: cast iron, ductile iron, carbon steel, stainless steel
Disc: cast iron, ductile iron, carbon steel, stainless steel
Stem: carbon steel, stainless steel
Seat: EPDM, PTFE, NBR
Bushing: PTFE, Bronze
2. Specifications
Size: DN25-1200 (1"-48")
Pressure: PN10/16(150/200 PSI)
Actuator: handle/gear box /pneumatic /electric
Standard: API, ASTM, ANSI, DIN, BS, JIS, ISO approved
End connection: wafer type, flange type, lug type
3. Features:
Wafer, lug or U type flanged body style fit between FF or RF flanges.
PTFE bushing ensures the maximum shaft support and centralized alignment360 degree polished disc assures positive on-off;
Long service life, standing the test of tens thousands opening/closing operations;
Bubbles-tight sealing with no leakage under the pressure test;
Wide selection of materials, applicable to various medium
4.Our product features are as follows:
1. Newly developed facilities ensure high and stable quality.
2. Enable to supply UL/FM valves.
3. Experienced technology
4. Excellent after-sale service to satisfy customers.
5. Sufficient capacity ensures prompt delivery.
6. Continuous quality improvement and new designs development.
7. Reasonable and stable price
8. Meets different countries standards, such as ANSI, DIN, and BS etc.
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.
Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.
The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
