Quick Details
- Standard or Nonstandard: Standard
- Structure: Control
- Pressure: Medium Pressure
- Power: Solenoid
- Material: Aluminum alloy
- Temperature of Media: Medium Temperature
- Media: Air
- Port Size: M5, G1/8",G1/4", G3/8",G1/2"
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 4V210-08
- Brand Name: VPC

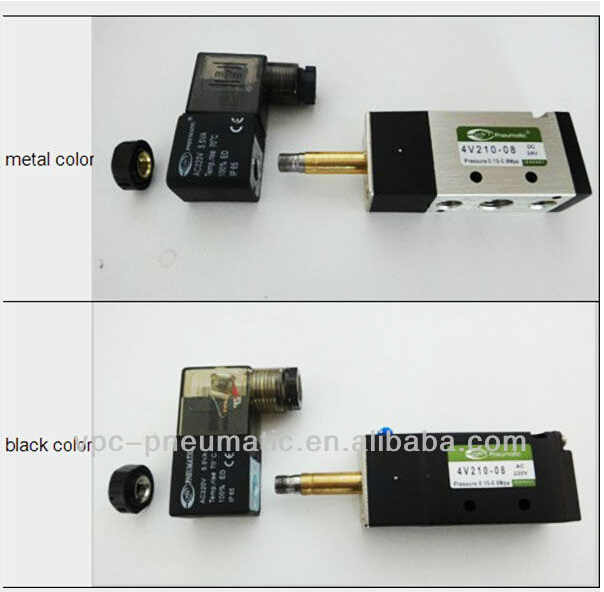

- color: black or grey
Packaging & Delivery
| Packaging Details: | Export standard packing(VPC BOX+VPC CARTON+PALLET) Neutral packing also avaiable |
|---|
| Delivery Detail: | 7 days |
|---|
Specifications
Solenoid valve pneumatic
Long service life (12000000 times)
Integrated valves, save more space and cost
Customize service Summary:
4V series solenoid valve pneumatic have 5/2 and 5/3 types, size from M5 to 1/2'', while 5/2 types have single solenoid type and double solenoid type
Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil.
5/3 type solenoid valve can make the cylinder piston stop at any position.
Long service life (12000000 times)
Integrated valves, save more space and cost
Customize service
With both lead wire and connector type.

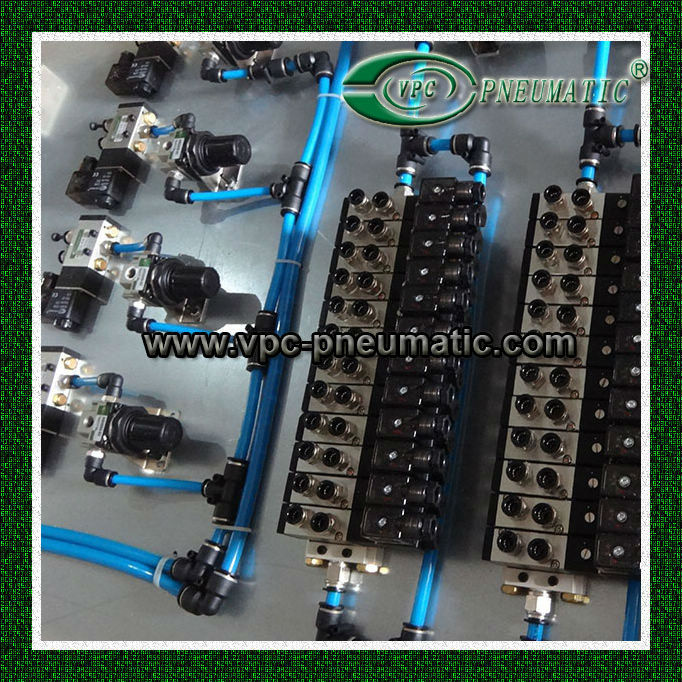

Equipped with suitable manifold,can support many valves working together
Different surface treatment.
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
