Quick Details
- Standard or Nonstandard: Standard
- Structure: Control
- Pressure: Medium Pressure
- Power: Solenoid
- Material: Aluminum alloy
- Temperature of Media: Medium Temperature
- Media: Air
- Port Size: M5, G1/8",G1/4", G3/8",G1/2"
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 3V110-06
- Brand Name: VPC
- color: black or grey
Packaging & Delivery
| Packaging Details: | Export standard packing(VPC BOX+VPC CARTON+PALLET) Neutral packing also avaiable |
|---|
| Delivery Detail: | 7 days |
|---|
Specifications
Internally piloted solenoid Valve
Long life (12000000 times)
Integrated valves, save more space and cost
Customize service Summary:
3V series 2 position 3 port Internally piloted solenoid Valve have single acting and double acting types.
Single acting solenoid valves are mainly used in controling the single acting type cylinder, size from M5 to 1/2''.
According to the difference of the flow, valve body have many types are available.
Din connector and flying leads types, different superficial treatment.
G, NPT PT etc are available.
Long service life (12000000 times)
Integrated valves, save more space and cost
Customize service

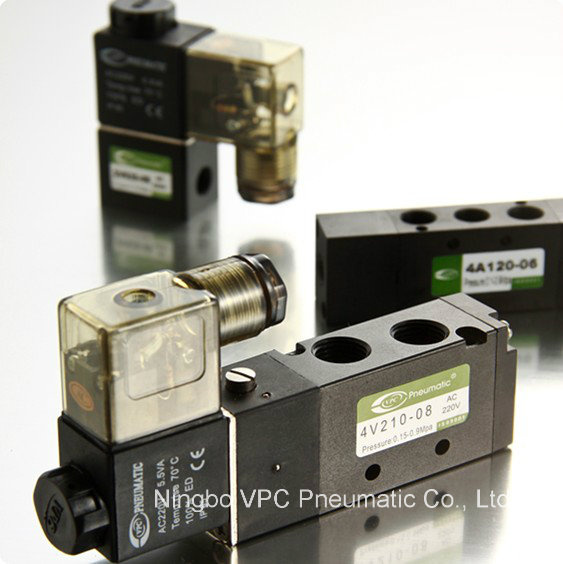

With both lead wire and connector type.

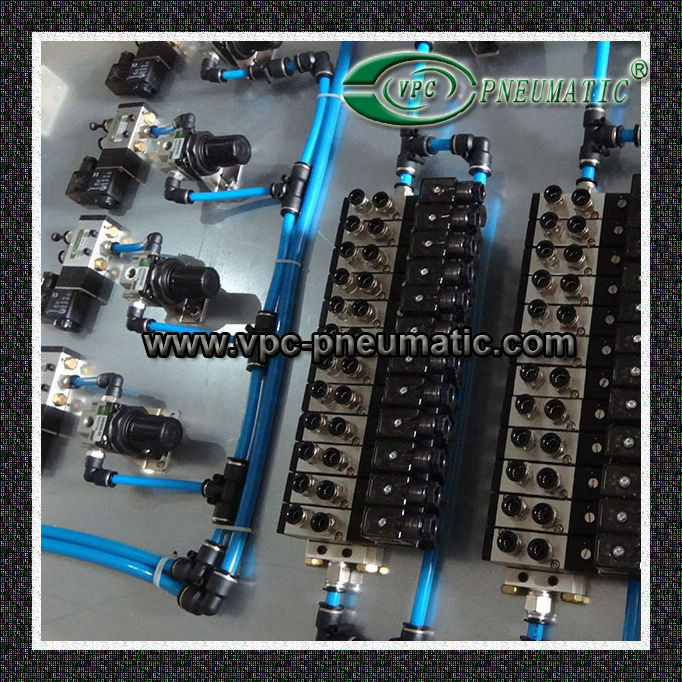

Equipped with suitable manifold,can support many valves working together
Secifications:
Ordering Code
| 3V | 2 | 10 | 08 | AC220V |
|
| | |
| |
|
Specifications Code
3V:Two position
three way solenoid valve | Body Size
1: 1/8"
2: 1/4"
3: 1/4" & 3/8"
4: 1/2" | Coil & Type
10:Single control
20:Double control
30C:Double control 3 position center close
30E:Double control 3 position center exhaust
30P:Double control 3 position center pressure | Joint Size
M5:M5
06: G1/8"
08: G1/4"
10: G3/8"
15: G1/2" | Standard voltage
DC12V
DC24V
AC24V 50/60HZ
AC110V 50/60HZ
AC220V 50/60HZ
AC380V 50/60HZ | Coil Type
Blank: DIN type
I: Flying leads |
2 position 3 port single control
| Model | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 | 3V410-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) |
| Ways | 2 Position 3 Port |
| Acting Type | Direct Acting |
| Joint Size | Import=M5
Export=M5 | Import=1/8
Export=1/8 | Import=1/4
Export=1/4 | Import=1/4
Export=1/4 | Import=3/8
Export=3/8 | Import=1/2
Export=1/2 |
| Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa |
| Guarantee Pressure | 1.2Mpa |
| Working Temperature | -5~60°C |
| Voltage Range | -15%~10% |
| Heat Resistant Grade | B |
| Protective Class | IP65(DIN40050) |
| Coil Type | DIN Type,Flying Leads |
| Max Acting Frequency | 5 Times/s | 5Times/s | 3 Times/s |
2 position 3 port double control
| Model | 3V120-M5 | 3V120-06 | 3V220-06 | 3V220-08 | 3V320-08 | 3V320-10 | 3V420-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) |
| Ways | 2 Position 3 Port |
| Acting Type | Direct Acting |
| Joint Size | Import=M5
Export=M5 | Import=1/8
Export=1/8 | Import=1/4
Export=1/4 | Import=1/4
Export=1/4 | Import=3/8
Export=3/8 | Import=1/2
Export=1/2 |
| Sectional Area | 5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa |
| Guarantee Pressure | 1.2Mpa |
| Working Temperature | -5~60°C |
| Voltage Range | -15%~10% |
| Heat Resistant Grade | B |
| Protective Class | IP65(DIN40050) |
| Coil Type | DIN Type,Flying Leads |
| Max Acting Frequency | 5 Times/s | 5 Times/s | 5 Times/s | 5 Times/s | 5 Times/s | 5 Times/s | 4 Times/s
|
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
