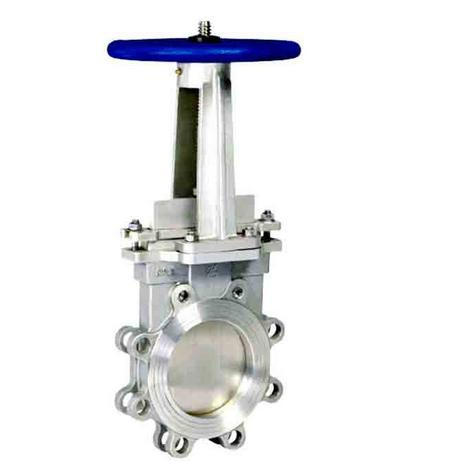

Lugged knife gate valve
Specifications
Pressure: Class150.
Size: DN50-DN1200
Body: Stainless steel
Quick Details
Standard or Nonstandard: StandardStructure: GatePressure: Low Pressure
Power: ManualMaterial: Stainless SteelTemperature of Media: Normal Temperature
Media: WaterPlace of Origin: China (Mainland)
Brand Name: gml perated type: HandwheelOptional seat: Metal, EPDM
Packaging & Delivery
Packaging Detail: Plywood case
Delivery Detail: 30days after receive payment.
Specifications
Lugged knife gate valve,
Pressure: Class150.
Size: DN50-DN1200
Body: Stainless steel
Lugged knife gate valve
Body: CF8M
Gate: SS316
Stem nut: Bronze
Seat: Viton
Suitable for pulp and paper, powdery, water treatment, etc.
Primary Competitive Advantages:
Well and High Quality Control
Prompt Delivery
Customers designs and logos are welcome
Small order acceptable
Main performance specification
Nominal pressure(MPa) | Body testing (MPa) | Seal testing (MPa) | Working temperaute (ºC) | Appropriate media |
1.0 1.6 | 1.5 2.4 | 1.1 1.8 | Rubber≤100ºC Y/H≤425ºC | paper pulp,dirty water,coal slurry,ashes,compornds of water and slag. |
Materials of main parts
Body,cover | Gate | Stem | Seal surface |
stainless steel,carbon steel,cast iron | stainless steel | stainless steel | Rubber,PTFE,stainless steel,hard alloy |
Nominal diameters and coupling sizes
Nominal pressure MPa | Nominal diameter DN | L ength | Flange diameter Bolt | Central round diameter | Coupled protruding part diameter | H | N-M | DO | Nominal pressure MPa | Nominal diameter DN | L ength | Flange diameter Bolt | Central round diameter | Coupled protruding part diameter | H | N-M | DO |
1.0 | 50 | 50 | 160 | 125 | 100 | 285 | 4-M16 | 180 | |
|
|
|
|
|
|
|
|
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
