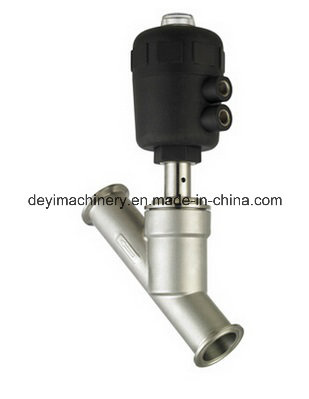

Ss304 Sanitary Stainless Steel Clamped Angle Seat Valve (DY-SV026)
| Price: |
US $ 35.6-99.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Application:Control gas: Neutral gas, air control liquid, automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.Function:Angle seat valve keep the flow speed and can save the space, it adopt oriented angle seat valve which have spring safety protective single function pneumatic actuator for operated.When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator, ensure can use longer.Feature:1. It have valve open or close position display.2.2. Pneumatic guide outside, can prolong the service life, maintenance free.3. IT have self-regulation sealing gland between overfall and slider, can improve sealing property.4. The structure of angel seat valve body, can achievable mass flow(especially compare with normal stop valve), compact structure response is fast.Standard Design:Single function (The pneumatic head usually a hole): Working principle: To reach the open and close function according to spring reset, it divide into normally open and close.Double function (the pneumatic head usually two hole): Working principle: Give the air to control switch. (according to customer's required, it can choose double function add spring rest, control precise)The pneumatic angle seat valve according to pipeline installation category can divide into: Welded, clamped, threaded and flanged connect type.The actuator of pneumatic angle seat valve can divide into: Plastic actuator angle seat valve and stainless steel actuator angle seat valve.Technical Data: :Range of pressure: 0~2.5Mpa(PN0-PN25)Medium temperature:-20~+180 degree (normal type)-20~+300degree(high temperature)Enviroment temperature: -10~+60 degree
| Prod Model: |
SV026 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Actuator Material: |
PA ( PPS for Option) |
| Seal Material: |
PTFE( NBR, FPM, EPDM for Optional) |
| Filling Seal: |
PTFE V-Ring |
| Valve Body Material: |
Thread, Casted Steel 316L |
| End Connection Material: |
Stainless Steel 316L |
| Connection Form: |
Thread |
| Usage: |
Heating Pipeline |
| Material: |
Thread, Clamp, Flange |
| Service Life: |
Dairy Produce Line |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
