Stainless Steel Solenoid Valve
| Price: |
US $ 53/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

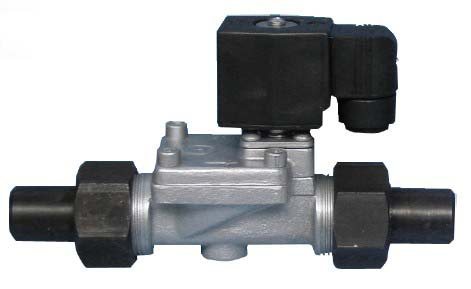

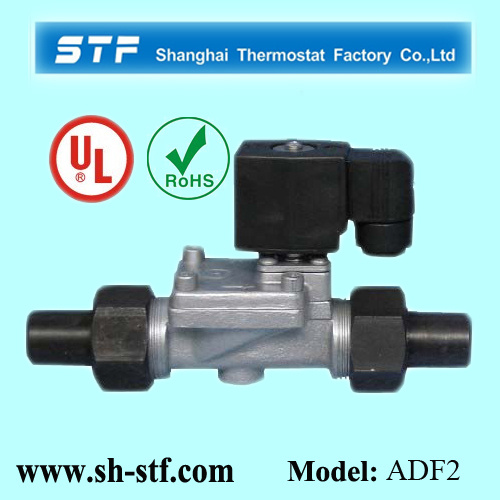

Stainless Steel Solenoid ValveProduct Photos:
General:The coils of ADF-M solenoid valve are hermetic by plastic .It features moisture proof ,shock proof anti-corrosive .All parts are made by stainless steel .It can be used for ammonia and Freon refrigerating system .Also it can be used for pneumatic, hydraulic and water supply system.
Characteristics:Suitable for ammonia, HFC, HCFC ,clean water, ≤4°viscosity machine oil
Coil Type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V
Opening pressure diff.
AC: 0.05 – 21 bar
DC: 0.05 – 17 barMax working pressure:30barTemperature of medium: -25ºC to 105ºC
Versions with UL/CUL approval can be supplied to order.
Model |
Orifice
(mm) |
Connect tube |
Form of connect |
Flow rate
m 3 /h |
Dimensions(mm) |
|
(L) |
(W) |
(H) |
|
ADF10MB |
10 |
20×5 |
welding-form |
1.9 |
186 |
58 |
136 |
|
ADF15MB |
15 |
22×3.5 |
4.5 |
186 |
58 |
136 |
|
ADF20MB |
20 |
28×4 |
5 |
186 |
58 |
136 |
|
ADF25MA |
25 |
32×3.5 |
Flange-form |
9.5 |
190 |
145 |
112 |
| Prod Model: |
ADF10MB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Solenoid Valve |
| Max Working Pressure: |
30bar |
| Temperature Of Medium: |
-25c to 105c |
| Coil Type: |
AC: 24V, 36V, 110V, 220V DC: 12V, 24V |
| Opening Pressure Diff.: |
AC: 0.05 ~ 21 Bar DC: 0.05 ~ 17 Bar |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Household Usage |
| Connection Form: |
Flange/Welding |
| Power Supply: |
AC and DC Solenoid Valve |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
