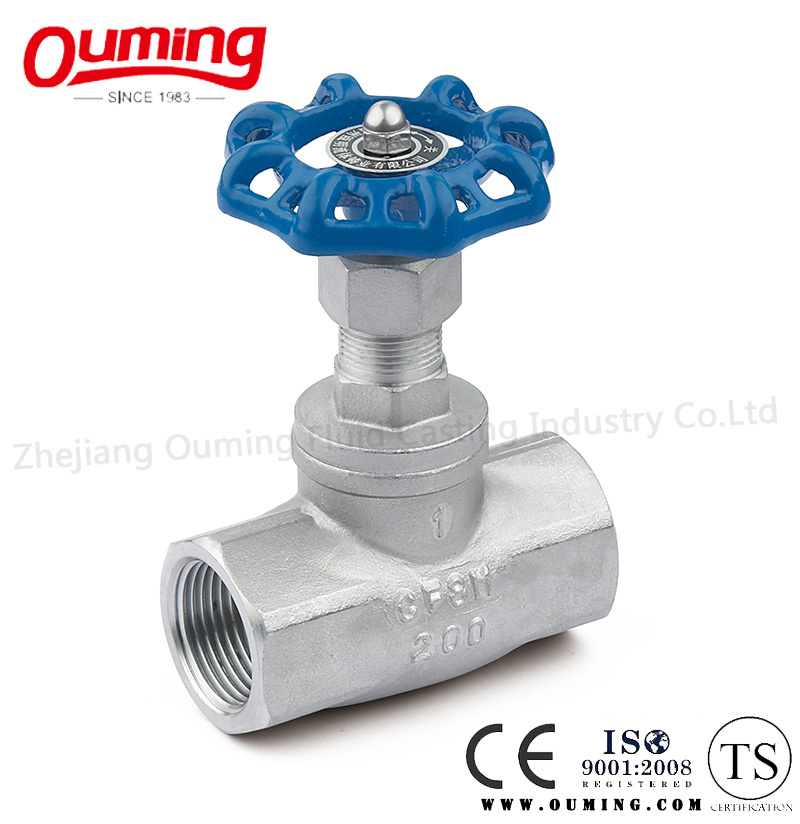

Threaded Globe Valve 200WOG
Investment casting body
Size :1/2" -2" (DN15-DN50)
Material : CF8,CF3,CF8M ,CF3M etc
Pressure :200psi, PN16
Suitable medium :water, oil, air and some corrosive liquid etc
Temperature Range : -20-300 degree C
Threaded end :NPT, BSPT, BSP, PT, DIN2999 etc
1. Over 20 years experience
2. ISO9001: 2000
3. OEM all kinds of Globe Valve
4. The safest valve in Zhejiang
Main Parts Materials:
| Item | Part Name | Material |
| 1 | Body | CF8/CF8M |
| 2 | Disc | CF8/CF8M |
| 3 | Cap | CF8/CF8M |
| 4 | Stem Holder Stem | SS304/316 |
| 5 | Packing | PTFE |
| 6 | NUT | SS304 |
| 7 | Gland | SS304/316 |
| 8 | Handle Wheel | Aluminium alloy |
Main Size:
| Size | D | L | H | T |
| 1/2" | 15 | 67 | 103 | 70 |
| 3/4" | 19 | 82 | 110 | 70 |
| 1" | 24 | 89 | 110 | 76 |
| 11/4" | 32 | 104 | 130 | 76 |
| 11/2" | 38 | 120 | 145 | 100 |
| 2" | 49 | 139 | 170 | 100 |
We will give you a reply within 24 hours after receiving your inquiry
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.
We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
