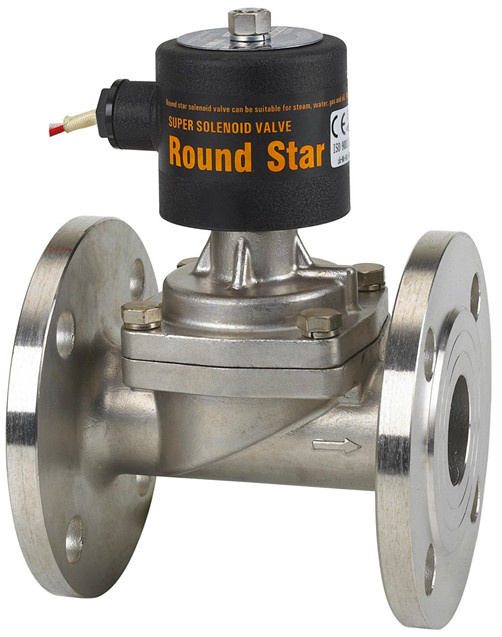

RSPS -25JF

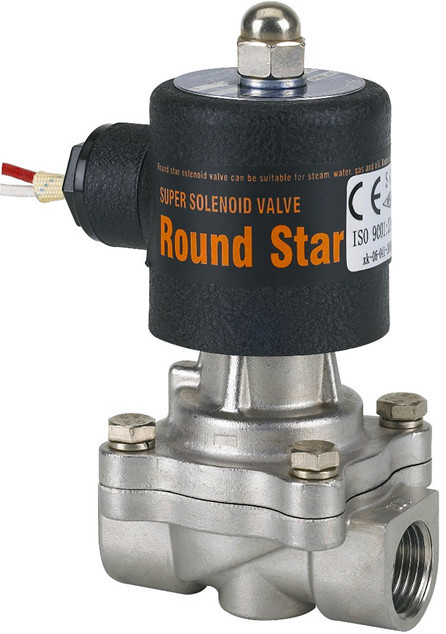

RSPS-15J
2/2 Way RSPS-J Series Solenoid Valve, G1/2" ÷ G2"
[Technical Specifications ]
-- Media: Steam, hot water, air, oil (below 20cst)
--Function type: Normally Closed (N/C)
--Pressure: 0~10 bar
--Temperature: -5 ÷ 180ºC
--Mode of action: Semi-direct lift type
--Body material: Stainless
-- Sealing material: PTFE
--Protection class: IP54
|
Model |
RSPS-15J |
RSPS-20J |
RSPS-25-J |
RSPS-32J |
RSPS-40J |
RSPS-50J |
RSPS-15JF |
RSPS-20JF |
RSPS-25JF |
RSPS-32JF |
RSPS-40JF |
RSPS-50JF |
|
G Connection |
G1/2" |
G3/4" |
G1" |
G1¼ " |
G1½ " |
G2" |
FLANGE |
FLANGE |
FLANGE |
FLANGE |
FLANGE |
FLANGE |
|
Orifice Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
15 |
20 |
25 |
32 |
40 |
50 |
|
Cv Value |
4.8 |
8.5 |
14 |
20 |
31 |
51 |
4.5 |
8.6 |
14 |
20 |
31 |
51 |
|
L |
mm |
70 |
72 |
98 |
116 |
120 |
168 |
106 |
106 |
135 |
140 |
145 |
182 |
|
H |
mm |
131 |
137 |
158 |
170 |
200 |
207 |
164 |
166 |
185 |
220 |
230 |
250 |
|
Power |
220VAC/50HZ 22VA |
220VAC/50HZ 30VA |
220VAC/50HZ 38VA; 110 ACV/50HZ 35 VA; DC24 56W; |
|
Medium temperature |
-5~180& ordm; C
|
|
Pressure |
bar |
0~10 |
|
Power |
20 |
