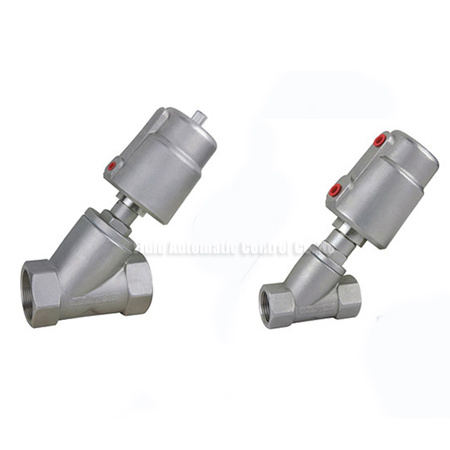

*Two position two way,External pilot-operated
*DN10~80mm,Port G3/8”~G3”
*Body Material stainless steel 304 or Stainless steel 316
*Actuator material stainless steel 304
*Easy for mounting,actuator can be 360°turnable
*Downstream installing and Upstream installing both available
| ORDERING CODE | ||||
| SVA | 15 | 1 | S | NC |
| Type | DN and Port Size | Body Material Code | Motion Pattern And Mounting | Initial State |
| SVA:SVA Series Angle seat piston valve with Stainless steel actuator | 10:G3/8" | 1:Brass | S: Single Acting | NC:Normal Closed |
| 15:G1/2" | ||||
| 20:G3/4" | ||||
| 25:G1" | 2:Stainless Steel 304 | D: Double Acting | ||
| 32:G1-1/4" | ||||
| 40:G1-1/2" | NO:Normal Open | |||
| 50:G2" | 3:Stainless Steel 316L | F:Flange Mounting | ||
| 65:G2-1/2" | ||||
| 80:G3" | ||||
| Body materialS.S316/S.S304/Brass Actuator materialS.S304 Seat sealPTFE/FPM Stem sealPTFE/FPM Piston sealFPM/NBR Technical parameter Connection sizeDN10—DN80 Thread3/8"—3" Applicable mediumwater, neutral gas or liquid, alcohol, oil, organic solvent, steam, lye and weak acid solution. Temperature of mediumPTFE:-10℃—+200℃ FPM:-10℃—+100℃ Visciditymax600mm2/s Downstream installing/Upstream installing Controlling mediumair/neutral gas Controlling pressure0.3—0.8MPa Working pressure0—1.6MPa |
| DN | RC | L | L1 | SW | H | D | Actuator |
| 10 | 3/8" | 55 | 17 | 21 | 120 | 51 | 40 |
| 15 | 1/2" | 70 | 21 | 26.5 | 138 | 51 | 40 |
| 20 | 3/4" | 76 | 23 | 32 | 154 | 62 | 50 |
| 25 | 1" | 90 | 25 | 40 | 168 | 62 | 50 |
| 32 | 1-1/4" | 116 | 32 | 50 | 200 | 76 | 63 |
| 40 | 1-1/2" | 116 | 32 | 55.5 | 215 | 92 | 80 |
| 50 | 2" | 138 | 40 | 68.5 | 230 | 92 | 80 |
| 65 | 2-1/2" | 168 | 51 | 85 | 268 | 117 | 100/125 |
| 80 | 3" | 192 | 54 | 100 | 325 | 140 | 100/125 |
| PARTS LIST | |||||||
| 2.01 bolt | 3.1 body | 4.1 spring |
| 2.02 orifice plate seal | 3.2 seal ring | 4.2 piston |
| 2.03 seal disc | 3.3 screw connector | 4.3 O ring |
| 2.04 disc | 3.4 cylinder | 4.4 bonnet |
| 2.5 stem | 3.5 observation window | 4.5 O ring |
| 2.6 V sealing | 4.6 bearing rin | |
| 2.7 spring |
| Prod Model: | SVA-15-2S-NC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: | Dn10~80mm,Port G3/8"~G3" |
| Type: | Pilot Operated |
| Valve Structure: | Pilot Piston Structure |
| Application: | Water Industrial Usage |
| Connection Form: | Thread/Flange |
