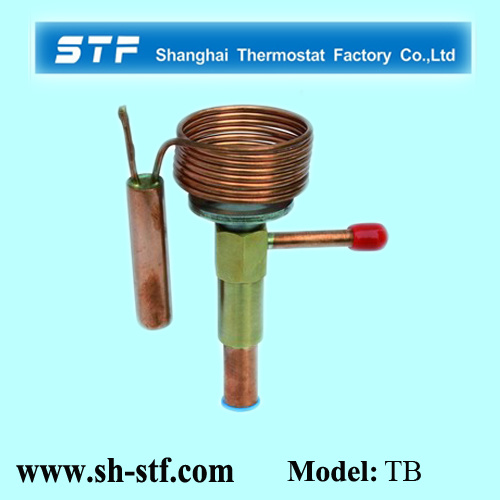

TB Thermal Expansion Valve
General Characteristics
- The model TB thermostatic expansion valve is a kind of thermostatic expansion valve with fixed valve port for automaticly supplying and regulating the refrigerant , which is suitable for small scale refrigeration system.
- The powerhead is laser welded for long life.
- Superheat (3.5K) is fixed.
- ODF copper tube welding.
- Suitable for Freon and hydrocarbons.
- Maximum working pressure: 2.8 MPa.
Technical data
| Model | Nominal capacity (kw) | Type of equalization | Connection size | Capillary Length |
| R134a | R22 |
| TB-1 | 0.5 | 0.7 | Internal equalizated | ODF Inlet1/4 ORφ6 Outlet3/8,φ10 OR1/2,φ12 | 0.75m OR 1m OR 1.5m |
| TB-2 | 0.8 | 1.1 |
| TB-3 | 1 | 1.4 |
| TB-4 | 1.2 | 1.7 |
| TB-5 | 1.6 | 2.8 |
| TB-6 | 2.1 | 3 |
| TB-7 | 3.1 | 4.4 |
| TB-8 | 3.7 | 5.3 |
| TB-11 | 4.9 | 7 |
| TB-12 | 6.2 | 8.8 |
| TB-13 | 7.2 | 10.2 |
| TB-14 | 9 | 12.8 |
| TB-15 | 9.5 | 14 |
| TB-16 | 11.7 | 16.6 |
| TB6-01 | 12.4 | 17.6 | ODF Inlet:3/8,1/2 ORφ10,φ12 Outlet:5/8,3/4,7/8,OR φ16,φ19,φ22 | 1m OR 1.5m |
| TB6-02 | 14.9 | 21.12 |
| TB6-03 | 18.8 | 26.64 |
| TB6-04 | 19.8 | 28.16 |
Note: Condensing temperature +38ºC, evaporating temperature +5ºC; R134a: P=0.46MPa,R22:P=0.69MPa.
