300 series control valve characteristics
Pressure balance (bellows or balanced diaphragm)structure design, high sensitivity, high accuracy, good stability, wide adjusting range
Low noise, maintenance free, energy saving and environmental protection
Standard modular design
By assembly can be combination of control
Reading tips
For detailed product information, product animation, please click "contact us",
Then visit the company's website, Download and reading Or contact us directly
Summary

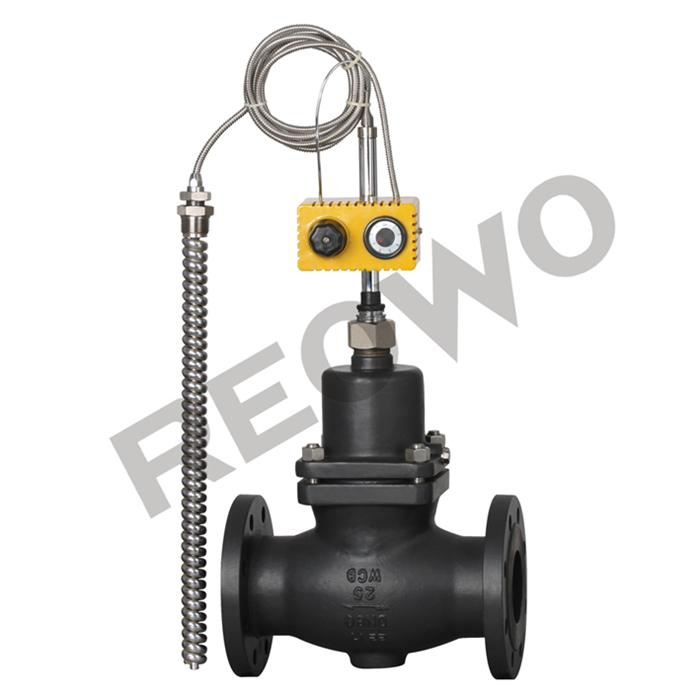

The 30T0 1Y/30T01R self-operated temperature (heating type )control valve is composed of the control valve and temperature cont roller provided with fixed point control...It is suitable for controling differential pressure in the pipes of non-crrosive liquids, gases and steams. When the
Temperature of the controlled mediums rises, the control valve is closed
The main features are as follows:
1. It has the pressure balancingfuncti on with high sensitivity.
2. Low noise, reliable performance, free of maintenance.
3. The standard modular design is adopted.
4. It adopts the imported fixed point controller, which has the over temperature protection function with reliable quality
5. Various combined controls can be carried out through the assemblies.
DN |
15\20\25\32\40\50\65\80\100\125\150mm |
PN |
Class150\300 |
Flange standard |
ANSI\JIS\DIN GB JB(special standards can be offered according to user requirements) |
Body material |
WCB\CF8\CF3\CF8M\CF3M |
Plug material |
Hard seal |
Stainless steel (304\316\316L) |
Soft seal |
Stainless steel embedded with rubber ring |
Pressure balancing |
Stainless steel bellows (DN15~125), balanced diaphragm (DN150) |
Actuator
Actuator mode |
T06 |
T17 |
Temperature setting range() |
-20~50 20~90 40~110 60~120 |
Special temperature setting() |
110~180 180~250 |
Temperature protection |
Exceeding the set value 100 |
Time constant(S) |
120 |
20 |
Temperature sensor material |
Nickel-coated copper |
Capillary tube length |
5\10\15m |
Performance
Set value error |
±1.5 |
Allowable leakage (under stipulated testing conditions) |
Hard seal |
4×0.01% valve rated capacity |
Soft seal |
DN15~50 |
DN65-DN125 |
DN150 |
10 bubbles/ min |
20 bubbles/min |
40 bubbles/min |
Allowable working temperature
DN |
|
15~150mm |
Seal type |
Hard seal |
≤150 |
Cooling tank≤200 |
Cooling tank and he at s ink≤350 |
Soft seal |
≤150 |
Rated flow coefficient, noise measuring coefficient, allowable differential pressure
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
Rated flow coefficient |
4 |
6.3 |
8 |
16 |
20 |
32 |
50 |
80 |
125 |
160 |
280 |
Noise measuring coefficient Z value |
0.6 |
0.6 |
0.6 |
0.55 |
0.55 |
0.5 |
0.5 |
0.45 |
0.4 |
0.35 |
0.3 |
Allowable differential |
PN16 |
1.6 |
1.5 |
1.2 |
pressure (Mpa) |
PN40 |
2 |
Working principle
When the temperature of the controlled object is lower than the set temperature, the liquid in the temperature sensor will contract, the force acted on the push rod of the actuator decreases, and the plug makes the valve open under the action of the spring force. The flow of steam, hot oil and other heating media is enhanced, so that the temperature of the controlled object rises. The valve will be closed when the temperature of the controlled object rises to the set value. After the valve is closed, the temperature of the controlled object falls and the valve is opened again. The heating media enter the heat exchanger and the temperature rises again, so as to make the temperature of the controlled object be a constant. The opening of the valve is related to the difference between the actual temperature of the controlled object and the set temperature.
I. Dimensions and weight of control valve
DN (mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
L (mm) |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
B (mm) |
212 |
212 |
238 |
238 |
240 |
240 |
275 |
275 |
380 |
380 |
326 |
Weight (Kg) |
6.2 |
6.7 |
9.7 |
13 |
14 |
17 |
29 |
33 |
60 |
70 |
80 |
II. Dimensions and weight of actuator
Model |
I(mm) |
d(mm) |
R(mm) |
m |
Weight(kg) |
T06 |
380 |
24 |
1" |
280 |
3 .0 |
T17 |
500 |
30 |
1" |
280 |
3 .5 |
