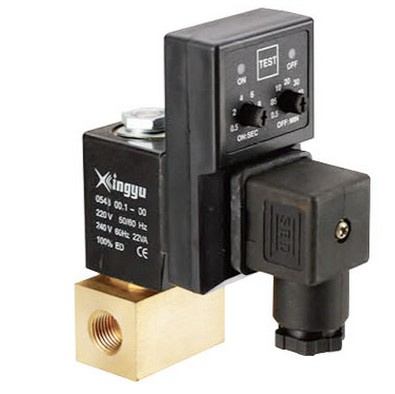

CS Automatic Drain Valve
Speciality :
1. Conforming to CE standard
2. Fully Automatic ,maintenance-free
3. Suitable for automatic discharge of condense water in many occasions and automatic irrigation system
4. Different voltage and port size are available for selection
5. Interval and working time can be adjustable
6. Without manual testing switch
7. ABS Flame-proof house ,can reach IP65 class after right installed
8. Applicable to a wide range of temperature
9. Direct-acting ,big orifice ,to avoid blockade
10. With filter ball valve, port size and manual switch can do any changes ,easy install and maintain
Parameters :
Valve style :2/2 direct action
Connection ports :1/4'' .3/8''.1/2'' Female
Working Pressure :16 /25 / 80bar
Working Temp :-20~60 degree
Highest Media Temp. : 160 degree
Valve Body :Brass / SS
Orifice :2 /3 /4.5 mm
Protection class :IP65
Insulation Class :F class
Voltage:24-240 AC/DC 50/60Hz
Power :AC22 VA / DC 20W
Mounting :Any Place
Please do not hesistate to contact with me .if you need more information
