Twin Spring Type Pressure Safety Relief Valve (GAA37/GAA38/GAA43)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
This Double Port (Double Spring ) safety valves are used for the equipment and pipeline and steam, water etc. medium what the working temperature are less than 350ºC.Take for extra pressure protection devices.GAA38Y,GAA43H,GAA37H Double Port safety valve, except the three-ways style(material WCB),the materials' of other parts is the same as GAA47H,GAA48Y type spring loaded type safety value.GAA38Y,GAA43H,GAA37H Double Port safety valve is composed of two A48Y or A47Y Type Safety Valves with the same specifications, which are fixed on a Y-Shaped Joint. The nominal Diameter is the inlet diameter of the Y-Shaped Joint. Here is the table to show its combination.GAA38Y | Corresponding GAA48Y |
50 | 32×2 |
80 | 50×2 |
100 | 65×2 |
150 | 100×2 |
GAA43Y | Corresponding GAA47Y |
50 | 32×2 |
80 | 50×2 |
100 | 80×2 |
125 | 100×2 |
150 | 125×2 |
GAA37Y | Corresponding GAA47Y |
50 | 32×2 |
80 | 65×2 |
100 | 80×2 |
125 | 100×2 |
150 | 125×2 |

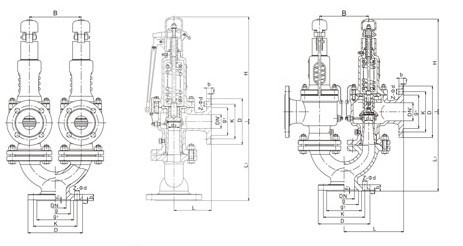

A38Y,A43H,A37H Double Port Safety Valve Dimension.Model | DN | do | D | K | g | g1 | b | f | f1 | Z-ød | DN' | D1 | K1 | g2 | b1 | f' | Z1-ød1 | L | L1 | L0 | h | H |
GAA37H-16C GAA43H-16C | 50 | 25 | 165 | 125 | 100 |
| 20 | 3 |
| 4-18 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 115 | 110 | 165 | 235 | 547 |
80 | 40 | 200 | 160 | 135 |
| 20 | 3 |
| 8-18 | 50 | 165 | 125 | 100 | 16 | 3 | 4-18 | 135 | 120 | 190 | 285 | 795 |
80 | 50 | 200 | 160 | 135 |
| 20 | 3 |
| 8-18 | 65 | 185 | 145 | 120 | 18 | 3 | 4-18 | 140 | 130 | 205 | 310 | 835 |
100 | 65 | 220 | 180 | 155 |
| 22 | 3 |
| 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 135 | 255 | 355 | 890 |
125 | 80 | 250 | 210 | 185 |
| 22 | 3 |
| 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 160 | 260 | 410 | 1170 |
150 | 100 | 285 | 240 | 210 |
| 24 | 3 |
| 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 190 | 190 | 275 | 430 | 1240 |
GAA37H-25 GAA43H-25 | 50 | 25 | 165 | 125 | 100 |
| 20 | 3 |
| 4-18 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 115 | 110 | 165 | 235 | 547 |
80 | 40 | 200 | 160 | 135 |
| 22 | 3 |
| 8-18 | 50 | 165 | 125 | 100 | 16 | 3 | 4-18 | 135 | 120 | 190 | 285 | 795 |
80 | 50 | 200 | 160 | 135 |
| 22 | 3 |
| 8-18 | 65 | 185 | 145 | 120 | 18 | 3 | 4-18 | 140 | 130 | 205 | 310 | 835 |
100 | 65 | 230 | 190 | 160 |
| 24 | 3 |
| 8-23 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 135 | 255 | 355 | 890 |
125 | 80 | 270 | 220 | 188 |
| 28 | 3 |
| 8-26 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 160 | 260 | 410 | 1170 |
150 | 100 | 300 | 250 | 218 |
| 30 | 3 |
| 8-26 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 190 | 190 | 275 | 430 | 1240 |
GAA37H-40 GAA43H-40 | 50 | 25 | 165 | 125 | 100 | 88 | 20 | 3 | 4 | 4-18 | 32 | 140 | 100 | 78 | 16 | 2 | 4-18 | 115 | 110 | 165 | 235 | 547 |
80 | 40 | 200 | 160 | 135 | 121 | 22 | 3 | 4 | 8-18 | 50 | 165 | 125 | 100 | 16 | 3 | 4-18 | 135 | 120 | 190 | 285 | 795 |
80 | 50 | 200 | 160 | 135 | 121 | 22 | 3 | 4 | 8-18 | 65 | 185 | 145 | 120 | 18 | 3 | 4-18 | 140 | 130 | 205 | 310 | 835 |
100 | 65 | 235 | 190 | 160 | 150 | 24 | 3 | 4.5 | 8-23 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 135 | 255 | 355 | 890 |
125 | 80 | 270 | 220 | 188 | 176 | 28 | 3 | 4.5 | 8-26 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 160 | 260 | 410 | 1170 |
150 | 100 | 300 | 250 | 218 | 204 | 30 | 3 | 4.5 | 8-26 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 190 | 190 | 275 | 430 | 1240 |
GAA38Y-16C | 50 | 20 | 165 | 125 | 100 |
| 20 | 3 |
| 4-18 | 40 | 150 | 110 | 85 | 16 | 3 | 4-18 | 198 | 100 | 165 | 225 | 636 |
80 | 32 | 200 | 160 | 135 |
| 20 | 3 |
| 8-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 230 | 120 | 190 | 265 | 817 |
100 | 40 | 220 | 180 | 155 |
| 22 | 3 |
| 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 293 | 140 | 265 | 265 | 921 |
150 | 80 | 285 | 240 | 210 |
| 24 | 3 |
| 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 320 | 175 | 250 | 420 | 1097 |
GAA38Y-25 | 50 | 20 | 165 | 125 | 100 |
| 20 | 3 |
| 4-18 | 40 | 150 | 110 | 85 | 16 | 3 | 4-18 | 198 | 100 | 165 | 225 | 636 |
80 | 32 | 200 | 160 | 135 |
| 22 | 3 |
| 8-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 230 | 120 | 190 | 265 | 817 |
100 | 40 | 230 | 190 | 160 |
| 24 | 3 |
| 8-23 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 293 | 140 | 265 | 265 | 921 |
150 | 80 | 300 | 250 | 218 |
| 30 | 3 |
| 8-26 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 320 | 175 | 250 | 420 | 1097 |
GAA38Y-40 | 50 | 20 | 165 | 125 | 100 | 88 | 20 | 3 | 4 | 4-18 | 40 | 150 | 110 | 85 | 16 | 3 | 4-18 | 198 | 100 | 165 | 225 | 636 |
80 | 32 | 200 | 160 | 135 | 121 | 22 | 3 | 4 | 8-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 230 | 120 | 190 | 265 | 817 |
100 | 40 | 235 | 190 | 160 | 150 | 24 | 3 | 4.5 | 8-23 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 293 | 140 | 265 | 265 | 921 |
150 | 80 | 300 | 250 | 218 | 204 | 30 | 3 | 4.5 | 8-26 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 320 | 175 | 250 | 420 | 1097 |
Prod Model: |
GAA37/GAA38/GAA43 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Category: |
Safety Valve |
Connecting Type: |
Flange |
Material: |
C.S |
Medium: |
Steam,Water.,etc |
Medium Temperature: |
Below 350 Deg C |
Usage: |
Safety |
Application: |
Industrial Equipment and Pipeline |
