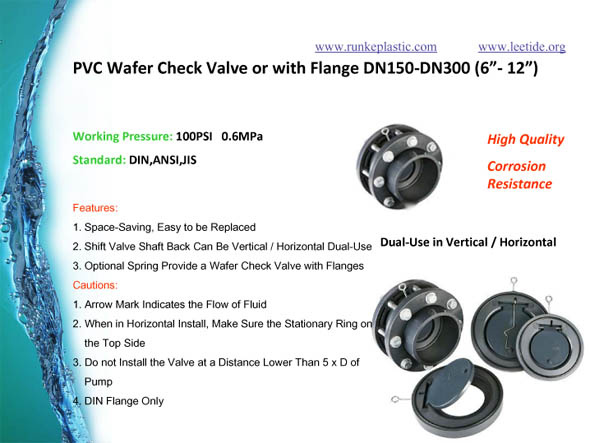

UPVC Wafer Check Valve DIN Standard DN150-DN300 (6"-12")
Working pressure: 6kg/ cm2 100 psi
Material: PVC, CPVC
Standard: DIN
FEATURES:
1. Space-Saving, Easy to Replace
2. Shift Valve Shaft Back Can be Vertical / Horizontal Dual-Use,
3. Optional Spring Provide a Wafer Check Valve with Flanges
CAUTION:
1. Arrow Mark Indicates the Flow of Fluid When in Horizontal Install, Make Sure the Stationery Ring on the Top Side.
2. Do not Install the Valve at a Distance Lower Than 5 x D of Pump Out.
|

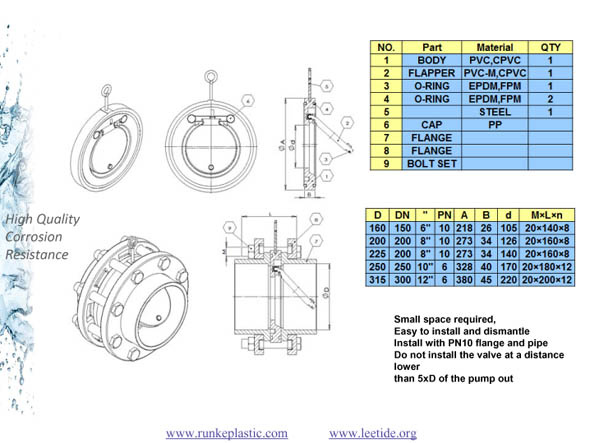

Inch |
D |
DN |
PN(MPa) |
A |
B |
d |
Flange |
Bolt MxL |
|
6" |
160 |
150 |
1.0 |
218 |
26 |
105 |
DN150 |
20x130 |
|
8" |
200 |
200 |
0.6 |
273 |
34 |
126 |
DN200 |
20x140 |
|
8" |
225 |
200 |
0.6 |
273 |
34 |
140 |
DN200 |
20x140 |
|
10" |
250 |
250 |
0.6 |
330 |
40 |
170 |
DN250 |
22x160 |
|
12" |
315 |
300 |
0.6 |
380 |
47 |
220 |
DN300 |
22x180 |
