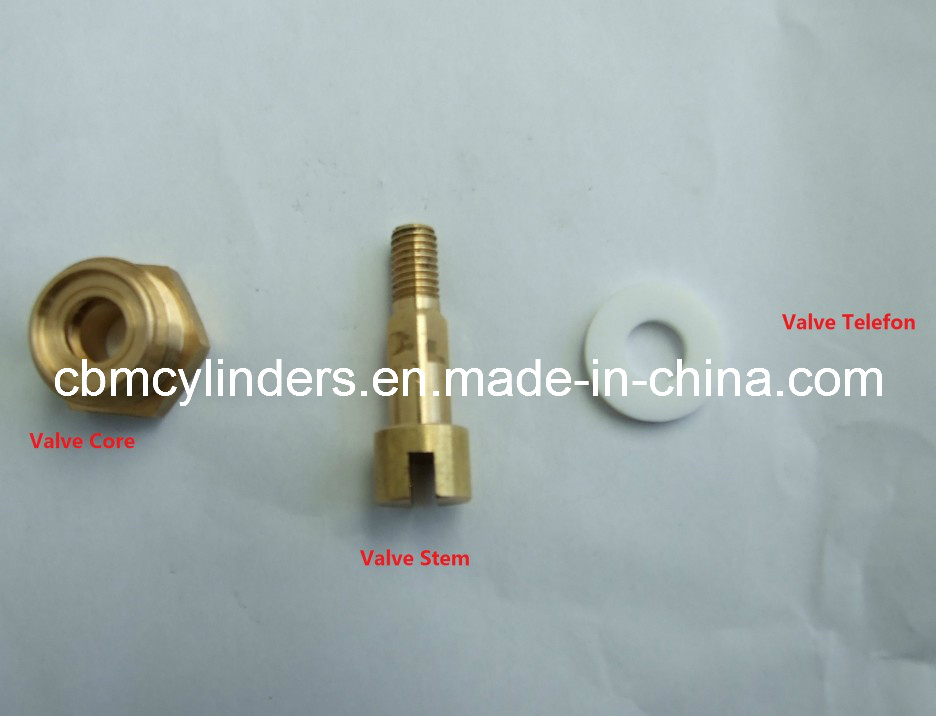

Valve Stems, Telfons, Cores for Gas Cylinder Valves, Brass Gas Valve Fittings for Gas Cylinder Valve.
Referenced specs of our pin index gas valves:
-Mat: Brass;
-DN: 2.5 mm; W. P: 15Mpa;
-Outlet Thread: Yoke Connection;
-Inlet Thread: 3/4-16UNF/3/-4'-14NGT/PZ27.8(to-be-confirmed)
*Note: Besides, inlet threads of PZ27.8, PZ19.2, DIN477 W28.8 25E, DIN477 W19.8 25E, 3/4-14NGT, BS1" 341, JIS B8246, V2, M18*1.5 can be satisfied(Threads can be customized)
Medical Pin Index O2 Valves CGA870 With TAPER THREADS for Breathing Oxygen Cylinders.
Our branch factory valves is specialized in the production of valves for various gas cylinders. It mainly produces Gas Cylinder Valves, gas pipe valves, Industrial Gas decompressors, civil Liquid Gas boosters, Brass Ball Valves and etc. They are made from brass. We can design and manufacture most Oxygen Valves in accordance with your demand(drawing).
Should you have any interests or some more info needed on our manufactued GAS VALVES, just pls feel free to contact us! (Mob: +86-153 5606 5235)
|
NO. |
Type No. |
Produce Name |
suitable
Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread(mm) |
Jiont Thread to
cylinder (mm) |
Temp./Pressure of
safety device |
|
1 |
CGA870A |
Cylinder valve for oxygen (O2) |
O2 |
15 |
1.5 |
Ø7 clip2-Ø4.7 fixed mpin |
3/4-16-UNF |
steelcylinder21-23.2 Aluminum cylinder22.9-25.5 73deg±3deg |
|
2 |
CGA870-1 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø4.7 fixed mpin |
1/2-NPT |
21±1.5 |
|
3 |
CGA870-2 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø4.7 fixed mpin |
3/4-14-NGT |
/ |
|
4 |
CGA870-2A |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø4.7 fixed mpin |
GB8335 PZ27.8 |
/ |
|
5 |
CGA870-2B |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø6 fixed mpin |
GB8335 PZ27.8 |
/ |
|
6 |
CGA870-2C |
Cylinder valve for N2O |
N2O |
15 |
2.5 |
Ø7 clip2-Ø6 fixed mpin |
GB8335 PZ27.8 |
/ |
|
7 |
CGA870-3 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø4.7 fixed mpin |
1/2-NGT |
/ |
|
8 |
CGA870-3B |
Cylinder valve for oxygen (O2) |
O2 |
15 |
2.5 |
Ø7 clip2-Ø4.7 fixed mpin |
1/2-NGT |
/ |
|
9 |
CGA870-4 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
1.5 |
Ø7 clip2-Ø4.7 fixed mpin |
BS3411-1/14 |
/ |
|
10 |
CGA870-4A3 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
3 |
Ø7 clip2-Ø4.8 fixed mpin |
3/4-16-UNF |
73deg ±3deg |
|
11 |
CGA870-5 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
3 |
Ø7 clip2-Ø6 fixed mpin |
BS3411-1/14 |
/ |
|
12 |
CGA870-6 |
Cylinder valve for oxygen (O2) |
O2 |
15 |
3 |
Ø7 clip2-Ø4.7 fixed mpin |
3/4-14-NGT |
/ |
|
13 |
GA870B |
Cylinder valve for oxygen (O2) |
O2 |
15 |
1.5 |
Ø7 clip2-Ø4.7 fixed mpin |
3/4-16-UNF |
/ |
|
14 |
CGA910 |
Cylinder valve for N20 |
N20 |
15 |
1.5 |
Ø7 clip2-Ø4.8 fixed mpin |
3/4-14-NGT |
/ |
|
15 |
CGA670 |
Cylinder valve for Mixed gas |
Mixed gas(Cl2,etc) |
2 |
7 |
Male thread CGA670 |
3/4-14-NGT |
/ |
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is located in Yuyao, a famous historical and cultural city abutting on the Hangzhou Bay. The company established in June 2010, engaged in industry of high-pressure vessels. The factory covers about 21000square meters and an plant building with 15000 square meters. Now the company has the fixed asset more than 30 million RMB, and 120 employees. And there are 32 technicians among them. Also company has three advanced production lines of steel seamless cylinder and corresponding testing equipment. The company aims to produce and sales over 400000 0.2L-15L steel seamless cylinders each year.
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is based the company mission of Quality First, Customer First, Technology advanced and Service Best. Establishing the quality assurance system for gas vessel producing. The company has B1 level qualification on pressure vessel, and also passed the ISO9001: 2008 International Quality Management System Certification. The company uses the most strict standard management to manage the procession of producing and testing and dedicates to design and make high-quality products with the most advanced technology.
Our company has advanced equipment, and consummate equipment for product Testing. The main production including nitrogen bottles, argon bottle, carbon dioxide bottle and seamless steel cylinders. The products are sold very well all over the world. The company welcomes all friends come to communicate and discuss with us for seeking common win-win development, and dedicates to offer the users with the high quality products and excellent service.
