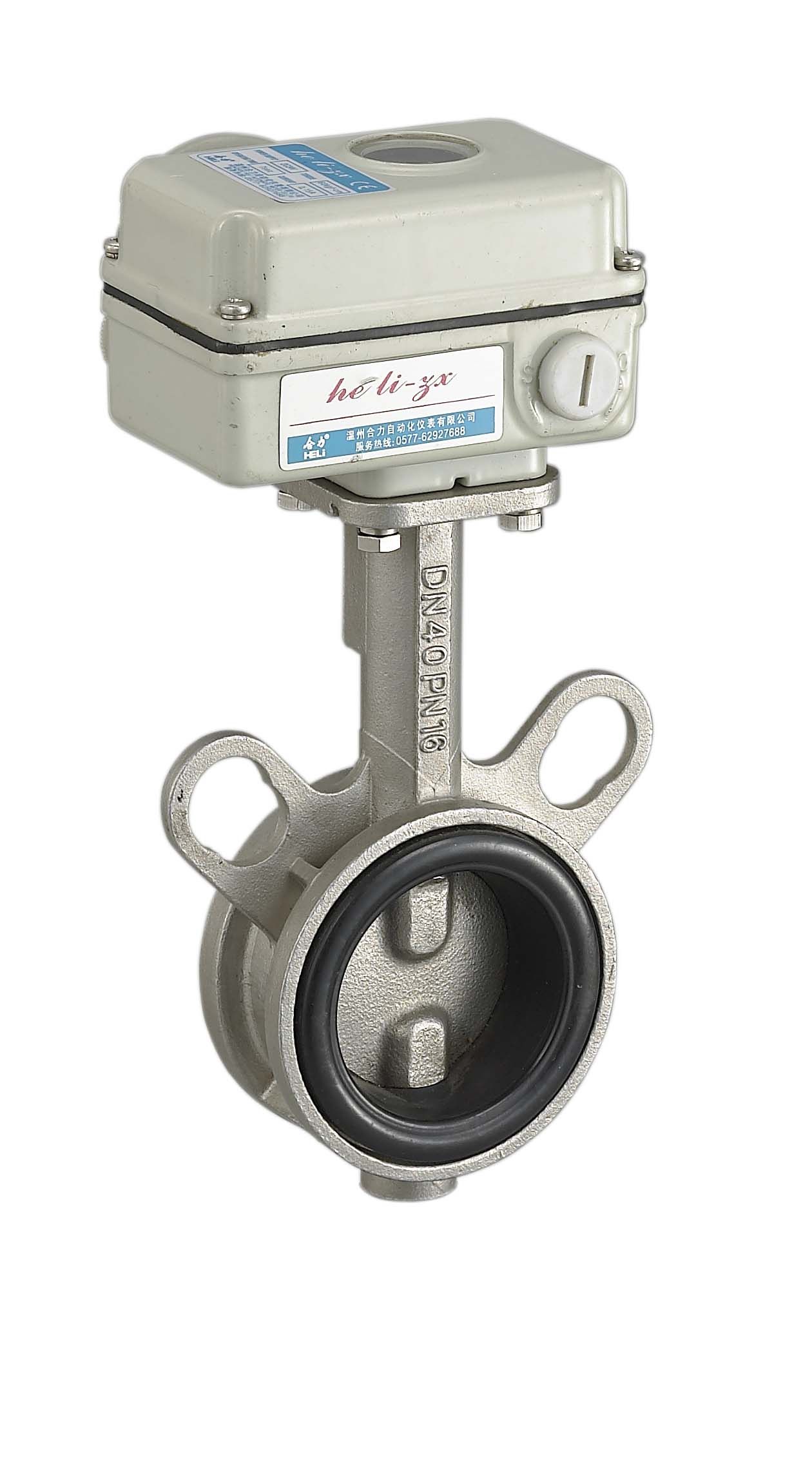

Butterfly valve
*Excellent sealing
*Long time life
*12VDC, 24VDC, 24VAC, 110VAC, 220~240VAC, 220~240VDC, 380~420VAC, 50/60HZ
*WCB, SS304, SS316
*ON/OFF control, passive contact control, position signal control, opens degree signal, Modulating control
*T/T, L/C, Western Union
*high quality, low noise
Model
Performance | HL-ZX |
| Voltage | AC85~260V | AC24V | DC24V | DC12V |
| Output Torque | 6N.m / 8.5N.m |
| Time | 7S / 9S |
| Rated current | 0.2A | 0.15A | 0.15A | 0.3A |
| Rotary angle | 0~90° |
| Insulated resistance | 100MΩ |
| Installation angle | Any angle |
| Case material | Aluminium die-casting components |
| Position-limiting | When power-operated,completely switching on or off
When manually operated : mechanical block |
| Protection class | IP67 |
| Surrounding temperature | -25°C~60°C |
