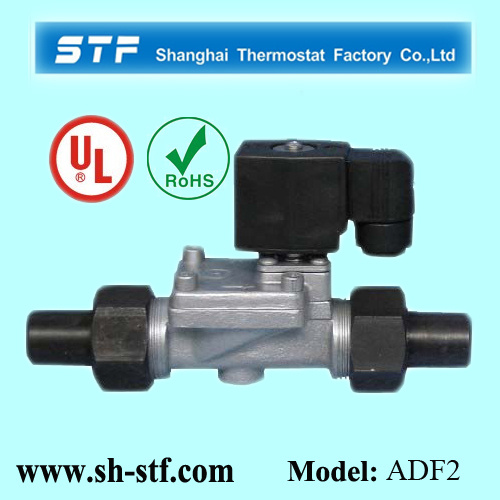

Water Supply Stainless Steel Solenoid Valve
General:
The coils of ADF-M solenoid valve are hermetic by plastic. It features moisture proof, shock proof anti-corrosive. All parts are made by stainless steel. It can be used for ammonia and Freon refrigerating system. Also it can be used for pneumatic, hydraulic and water supply system.
Characteristics:
Suitable for ammonia, HFC, HCFC, clean water, ≤ 4° Viscosity machine oil
Coil Type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V
Opening pressure diff.
AC: 0.05 – 21 bar
DC: 0.05 – 17 bar
Max working pressure: 30bar
Temperature of medium: -25º C to 105º C
Versions with UL/CUL approval can be supplied to order.
Model | Orifice
(mm) | Connect tube | Form of connect | Flow rate
m 3 /h | Dimensions(mm) |
| (L) | (W) | (H) |
| ADF10MB | 10 | 20×5 | welding-form | 1.9 | 186 | 58 | 136 |
| ADF15MB | 15 | 22×3.5 | 4.5 | 186 | 58 | 136 |
| ADF20MB | 20 | 28×4 | 5 | 186 | 58 | 136 |
| ADF25MA | 25 | 32×3.5 | Flange-form | 9.5 | 190 | 145 | 112 |
