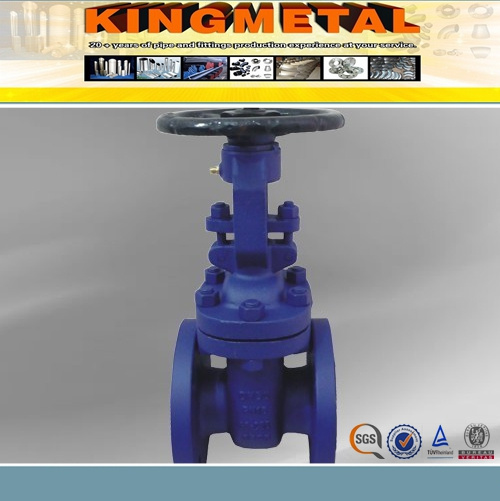

Wcb Handwheel Operated Gate Valve
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Design:
All gate valves are full ported and meet the design requirements of API standard API600 and general conform to ASME B16.34.
Product design and operation:
1. A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restric Tion is desired. The gate faces can form a wedge shape or they can be parallel.
Warranty responsibility:
Warranty period for 2pieces ball valve is 18 months from delivery date.
| handwheel operated gate valve |
| steel valves | ANSI B16.34 |
| face-to-face | ANSI B16.10 |
| flange dimensions | ANSI B16.5 ANSI B16.1 |
| weld end | ANSI B16.25 |
| basic design | API 600 |
| testing | API 598 |
| test pressure |
| Item/ Class | 150 | 300 | 600 | 900 | 1500 |
| shell(hydrostatic) | 425 | 1100 | 2175 | 3250 | 5400 |
| seat(hydrostatic) | 300 | 800 | 1600 | 2400 | 4000 |
| seat(air) | 80 | 80 | 80 | 80 | 80 |
| Prod Model: |
gate valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steel Valves: |
ANSI B16.34 |
| Working Tempreture: |
-50f-800f |
| Valve Material: |
Wcb |
| Testing Standard: |
API 598 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
