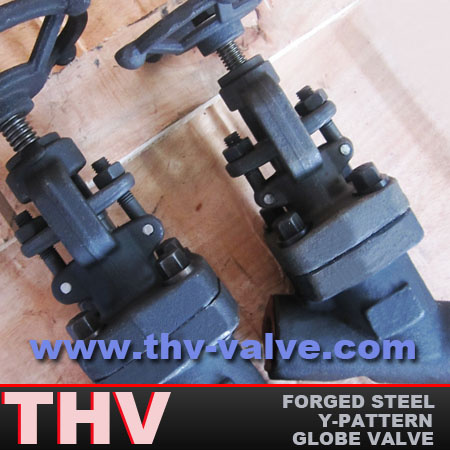

Y Pattern Forged Steel Globe Valve
| Price: |
US $ 18-20/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Y pattern globe valve has Bolted Bonnet, Welded Bonnet and Pressure Seal Bonnet design. Full Port or Reduced Port. Outside Screw and Yoke (OS&Y)
Materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F51; Monel; 20Alloy
Pressure Rating: Class 150 to Class 2500
Size: from 3/8" to 3"
Construction is as follows:
Design and manufacturing: BS5352, MSS-SP-118 & ANSI B 16.34.
Socket end conform to ANSI B16.11
Testing according to API 598

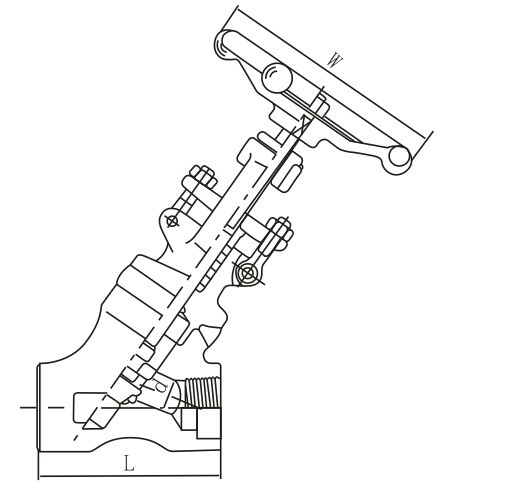

Face to Face according to ANSI B16.10
Marked as per MSS SP-25.
Materials conform to ANSI

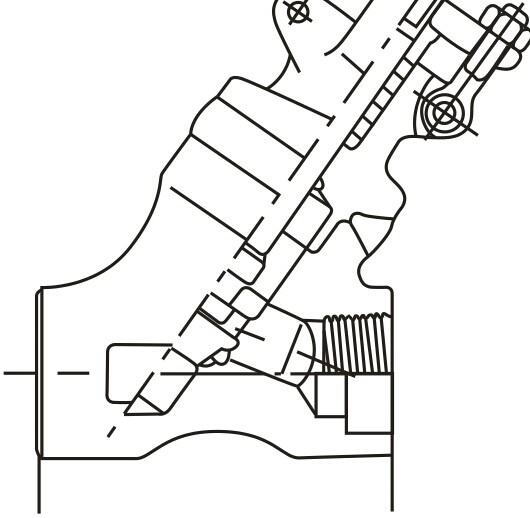

Welded bonnet type
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
2
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
3
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
4
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
5
|
Bonnet
|
A105
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
6
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
7
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
8
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
9
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
10
|
Handwheel
|
A197
|
11
|
Nameplate
|
SS
|
12
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
13
|
Yoke Nut
|
A276 410
|
14
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
15
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
16
|
Pin
|
A276 420
|
A276 304
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH3OOH etc
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
| Prod Model: |
THFSYG61H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Y Patern |
| Structure: |
Y-Global Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
ANSI |
| Application: |
Forged Steel Globe Valve |
