Connection Form: Flange
Material: CS/SS - WCB, WCA, WCC, A351, A744, 304, 304L, 316
Seal Surface: Wedge Gate Valve
Thread Position of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Certificate: ISO
Export Markets: North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia
Product Description

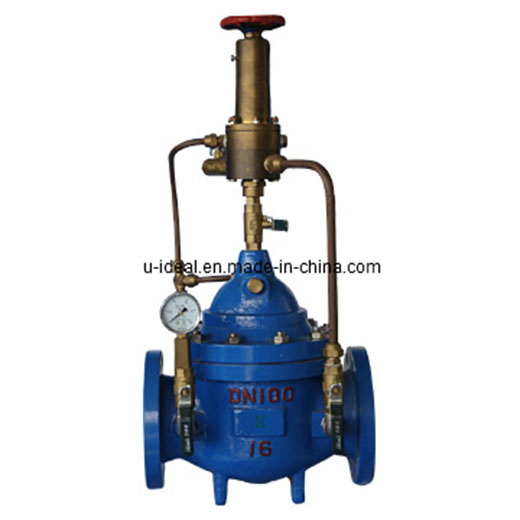

Pressure Release Valve: Functioned to release the pressure in pipeline which is in excess of the safe preset value of pilot valve, and to maintain in the pressure in pipeline below a certain safe value, thus to prevent pipeline equipments from damage due to high or sudden pressure.
This valve is used to release the pressure of fire control test circulating system in high-rises to prevent the system from danger due to excessive hydraulic pressure.
Pressure holding valve: Functioned to maintain the water supply pressure at the upper stream of main valve over a certain preset value.
Emergency Open Valve: Mounted at the water outlet of fire spraying pump, it will immediately open when the pressure at pump outlet rises over a certain preset value.
Specifications
1) Diaphragm type: DN50-DN350
Piston type: DN400-dn800
2) Pressure grade: PN10, PN16, PN25
Main materials:
1) Body and bonnet: Cast iron, ductile cast iron, WCB, WCA,
WCC, A351, 304, 340L, 316, 316L17-4PH
2) Disc: Brass, stainless steel, carbon steel
3) Stem: Stainless steel
Connection Form: Flange
Material: CS/SS - WCB, WCA, WCC, A351, A744, 304, 304L, 316
Seal Surface: Wedge Gate Valve
Thread Position of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Certificate: ISO
Export Markets: North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
| Suitable Medium | Water, Oil, Gas and etc. |
| Main material | CAST IRON,ASTM A216 WCB, WCC, WC6, SS304, SS316, CF8, ETC. |
| Suitable Temperature | ≤80 |
| Nominal Pressure | PN10--PN25 |
| Nominal Diameter | DN50--DN350 |
| Flange Dimension | ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements |
| Face to Face Length | API594,BS5155, ISO5752, DIN3352 and other standards conforming to the requirements |
