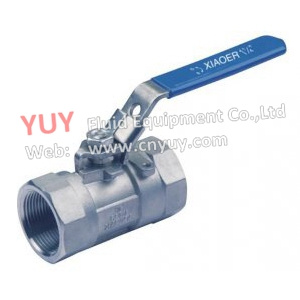

Yb Sanitary Stainless Steel Thread Ball Valve

Yb Sanitary Stainless Steel Thread Ball Valve
Price: US $ 50/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Quick Details

Model: YB Standard or Nonstandard: Standard Structure: Ball
Pressure: Medium Pressure Power: Pneumatic Material: Stainless Steel
Temperature of Media: Medium Temperature Media: Water Port Size: 15-200
Brand Name: YUY
Packaging & Delivery

Packaging Detail: Carten and polywood case
Delivery Detail: 2-3 days after payment

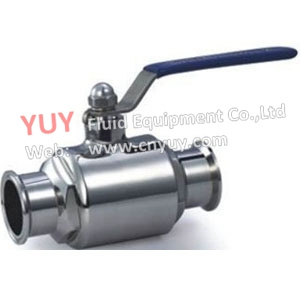

Sanitary Pneumatic ( manual) ball Valve (YB)
HS Code: 8481804090

1. Application:
It can be used to transfer the material. The range of application including food, beverage processing, medicine and chemical industry area, the bore design won't have any fluid resisitance. It can be used to trat the fluid and the handling viscous fluid or particulate material.

2. Material:
Steel parts: Stainless steel 304 or stainless steel 316L
Sealing: EPDM. (standard)

3. Advantages of Design:
The complete drainage system can avoid the retention of the products.
A)The Normally close valve (closed by spring) is the standard type
B)The normally open type valve (open by spring) is through simply conversion of the closed one's pneumatic.
The valve seat opened into the tank internal is to prevent accidental opening.
Even when welded with flanges, it can also be adjusted by 360°
The window opened to check the shaft sealing performance.
Loose the clamp can be simple disassembly.

4. Connection types:
Screw or threaded ( male or female )
Welded - srew
To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made to DN11850, IDF / ISO, SMS 3A international standard size.

5. Size:
DIN: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
3A: 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4"
SMS: 19, 25, 32, 38, 51, 63, 76, 89, 102
ISO:? 19,? 25,? 32,? 38,? 51,? 63,? 76,? 89,? 102,
6. Operation Type:
Manual: Lever or duck-billed
Pneumatic actuator: Stainless teel or plastic with control box or not.
Electric actuator: Sigle action or double action

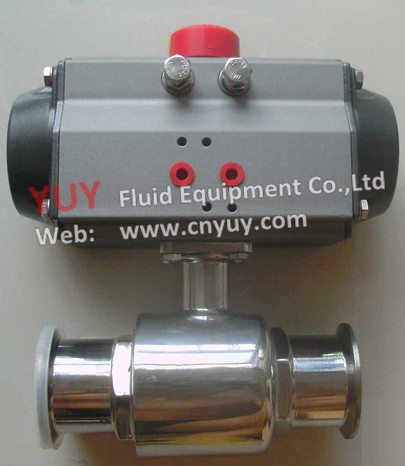

7. Features of Pneumatic actuator:
Normally opened: The spring is OPEN and pneumatic OFF
Normally closed: The spring is OFF and pneumatic OPEN
With signal feedback inductive proder / sensor for option
Compact appearance, small volume, large torgue
Simple and convenient assembly
8. Technical Parameter:
OD Range: DN25~ DN200, 1"~ 8"
Material pressure: Less than 10Bar
The actuator torque: 40NM
Compressed air pressure: 4~8bar
Finishing degree:
Cutting: Ra1.5 ~ 3.2um
Polish: Ra0.4~ 0.8um
9. Requirements for compressed air quality that the executor needs:
Compressed air joint: Air pipe equiped equips with air adapter R1/"
Max grain size: 0.11mm
Max Oil content: 0.08 ppm
Dew point: 10 ° C or less
Max water conent: 7.5g/kg

Prod Model: YB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Seal: PTFE
Material: Stainless Steel
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Food Industrial Usage
Connection Form: Clamp, Weld, Flange, Male
YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.

YUY is specialized in Manufacturing

Sanitary Pumps

Sanitary Valves

Sanitary Pipe fittings etc.,

Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.

For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.

All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.

In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.

Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.
