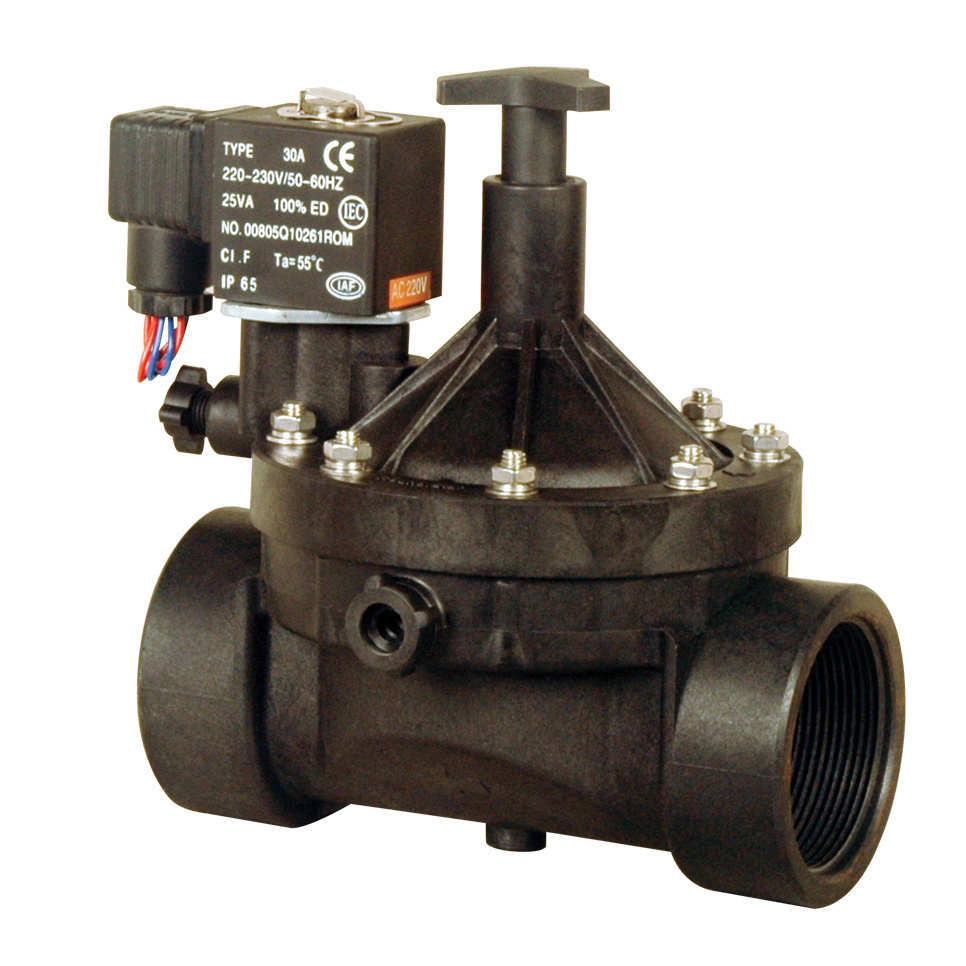

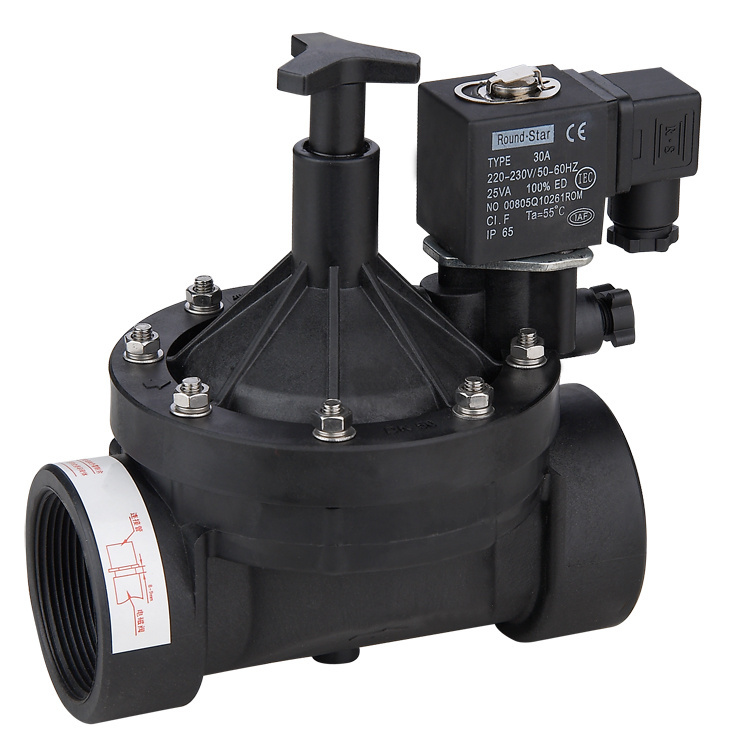

Features1. The YSA plastic solenoid valve is a valve for use with water, liquid, gas, etc.
2. The temperature of the medium is between 0 and 60º C
3. The acting pattern: Pilot type.
4. Working pressure: Liquid: 0.3-8bar.
5. The YSA plastic solenoid valve is made with the GFPA.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils: IP65.
8. It can be installed with a manual switch which is ideal for the conditions of blackout.
9. The YSA plastic solenoid valve is installed with a filtering net and flow control valve.
ApplicationThe YSA plastic solenoid valve is a valve for use with water, liquids, gas, agricultural water, pesticides and fertilizers.
|
Model |
YSA40 |
YSA50 |
|
Screw thread NPT |
11/2" |
2" |
|
Diameter (mm) |
40 |
50 |
|
CV factor |
28 |
48 |
|
L (mm) |
151 |
170 |
|
H (mm) |
130 |
140 |
|
Φ 1 (mm) |
62 |
75 |
|
Φ 2 (mm) |
40 |
50 |
|
Φ 3 (mm) |
112 |
130 |
|
Temperature of medium º C |
0~60 |
|
Operating pressure |
0.3~8bar |
|
Max compression resistance |
12bar |
|
Voltage |
220VAC/50HZ, 110VAC/50HZ, DC24V. Solenoid valve in other voltage range can be made to order; voltage range: -15%-10% |
|
Power |
AC 28VA; DC 12W |
