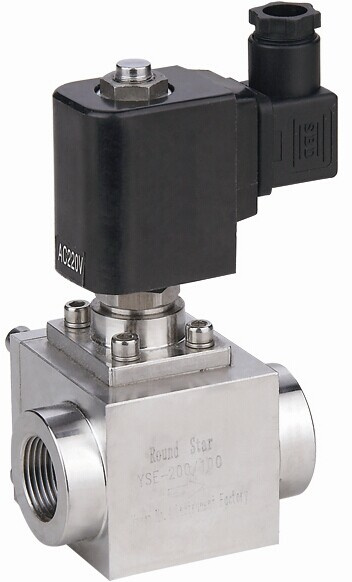

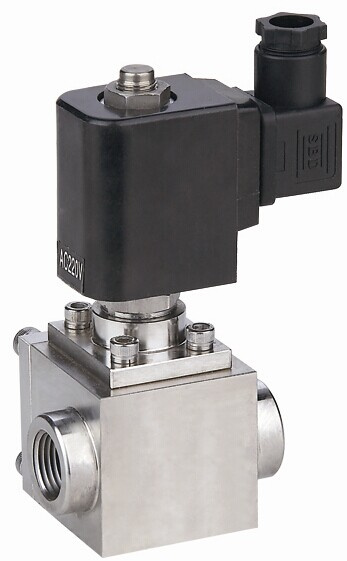

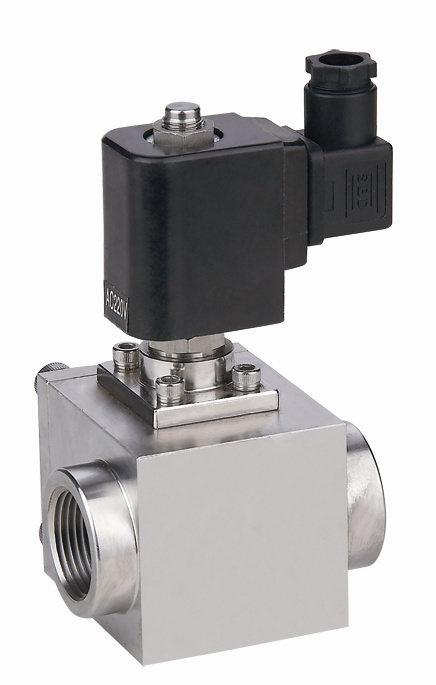

YSE High Pressure Solenoid Valve
Features1. YSE high pressure solenoid valve is a valve for use with the gas, water and liquid in low viscosity.
2. Operating pattern: Normally closed.
3. Voltage range: ± 10%
4. Materials: Stainless steel
5. Voltage: AC220, AC110, AC36 and DC24V
6. Operating pressure: ≥ 10MPa

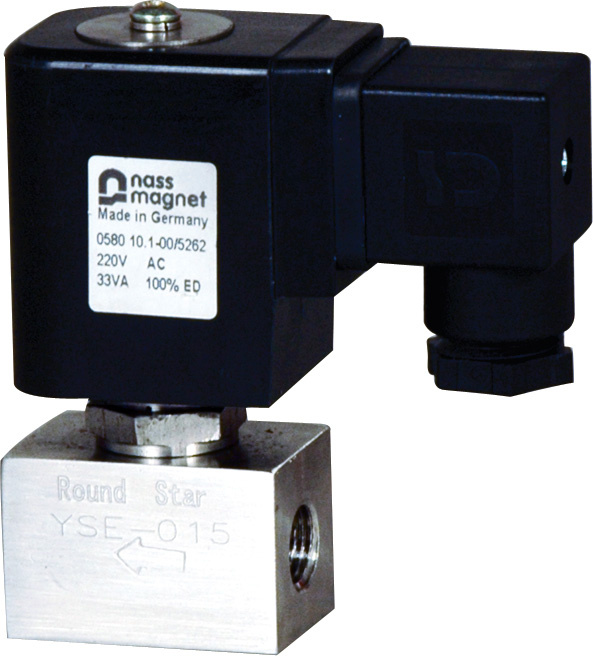

7. YSE high pressure solenoid valve adopts the German NASS coil.
8. Protection degree of the coils: IP65
9. The acting pattern: Two position two way.
|
Model |
Diameter mm |
Joint G |
Medium |
Acting Pattern |
Temperature C |
Nominal Pressure Bar |
Working Pressure Bar |
L mm |
H mm |
|
YSE-010 |
1.0 |
G1/4 OR G3/8 |
Liquid and gas |
Direct acting |
≤ 180 |
160/250 |
0-160/0-250 |
44 |
98 |
|
YSE-015 |
1.5 |
100/160 |
0-100/0-160 |
44 |
98 |
|
YSE-020 |
2.0 |
80/100 |
0-80/0-100 |
44 |
98 |
|
YSE-025 |
2.5 |
60/80 |
0-60/0-80 |
44 |
98 |
|
YSE-030 |
3.0 |
40/60 |
0-40/0-60 |
44 |
98 |
|
YSE-040 |
4.0 |
G3/8 OR G1/2 |
Liquid and gas |
Pilot |
≤ 100; ≤ 180 |
100/160 |
6-100/6-160 |
60 |
125 |
|
YSE-050 |
5.0 |
60 |
125 |
|
YSE-060 |
6.0 |
60 |
125 |
|
YSE-080 |
8.0 |
60 |
125 |
|
YSE-100 |
10 |
60 |
125 |
|
YSE-150 |
15 |
G1/2 |
70 |
138 |
|
YSE-200 |
20 |
G3/4 |
80 |
144 |
|
YSE-250 |
25 |
G1 |
90 |
154 |
